Item Description
Thermostatic technology allows you to maintain consistent temperature control in your showering system for the ultimate shower experience. This precision-engineered, best-in-class thermostatic valve comes mostly assembled for easy installation, and is designed for use with the elegant thermostatic valve control panel trim with recessed push-buttons. With four independently controllable ports, this valve is ideally suited for applications where up to four outlets are required.

• Item ID: 40Z9V72
• Width:
• Height:
• Extra Data: 3/4'' female NPT inlet connections, High-flow thermostatic mixing valve, Mechanically controlled thermostatic mixing valve maintains outlet temperature throughout shower experience, Up to 8 gpm (30.3 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 7 gpm (26.5 lpm) from one outlet
• Family: Anthem
• Bullet10: Includes optional flow restrictor, limiting total flow to 1.75 gpm (6.6 lpm), for installations where water conservation or CEC compliance is desired
• Bullet5: 1/2'' female NPT outlet connections
• Bullet6: Service stops with integral filters
• Bullet7: Antiscald protection
• Bullet8: Integrated adjustable high-temperature limit stop to control maximum water temperature
• Bullet9: Adjustable comfort setting (preset at approximately 104°F)
• Country: CN
• Description: Anthem Four-port recessed mechanical thermostatic valve
• Height: 4.88
• Introduction Date: 1/5/2022
• Length: 6.1
• Material: Brass/Plastic
• Ship Weight: 12.15
• Shipping Height: 7.6
• Shipping Length: 18.9
• Shipping Width: 8.54
• Spec Sheet: Spec Sheet
• Website Link: Website Link
• Weight: 12.15
• Width: 16.52

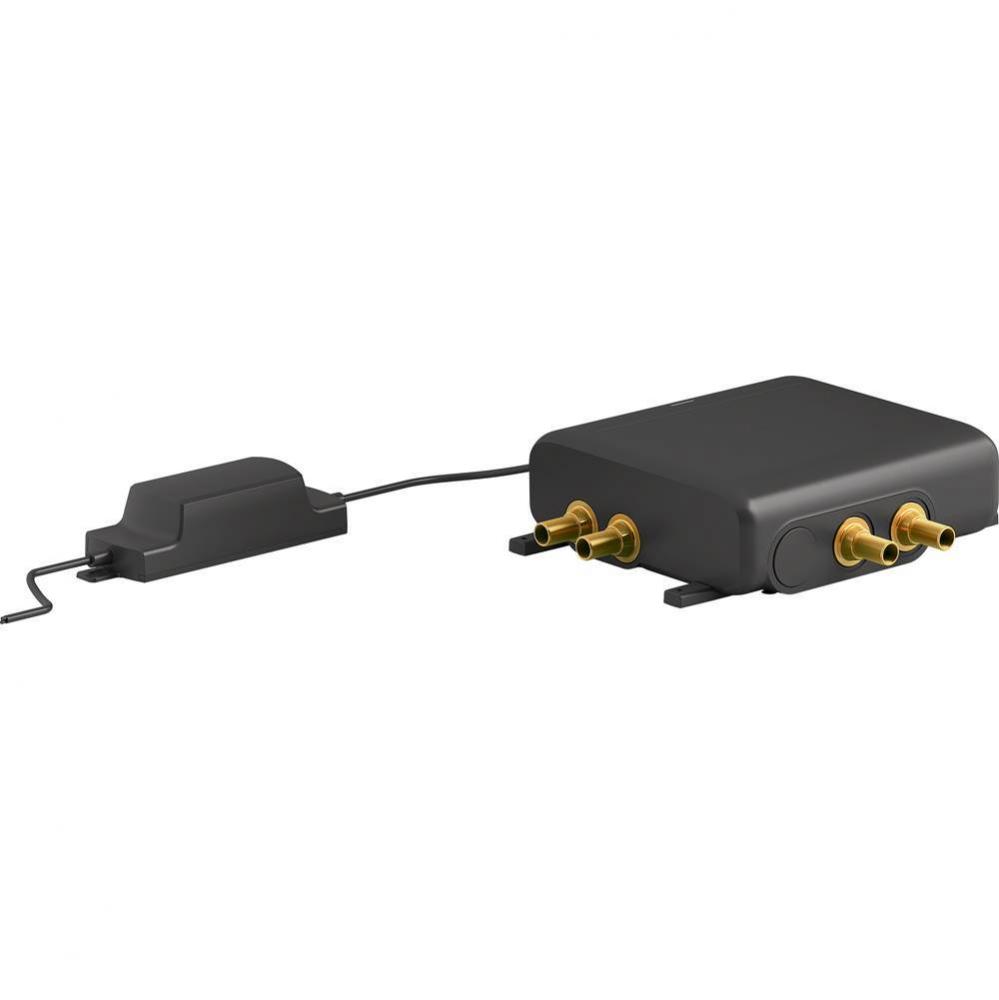

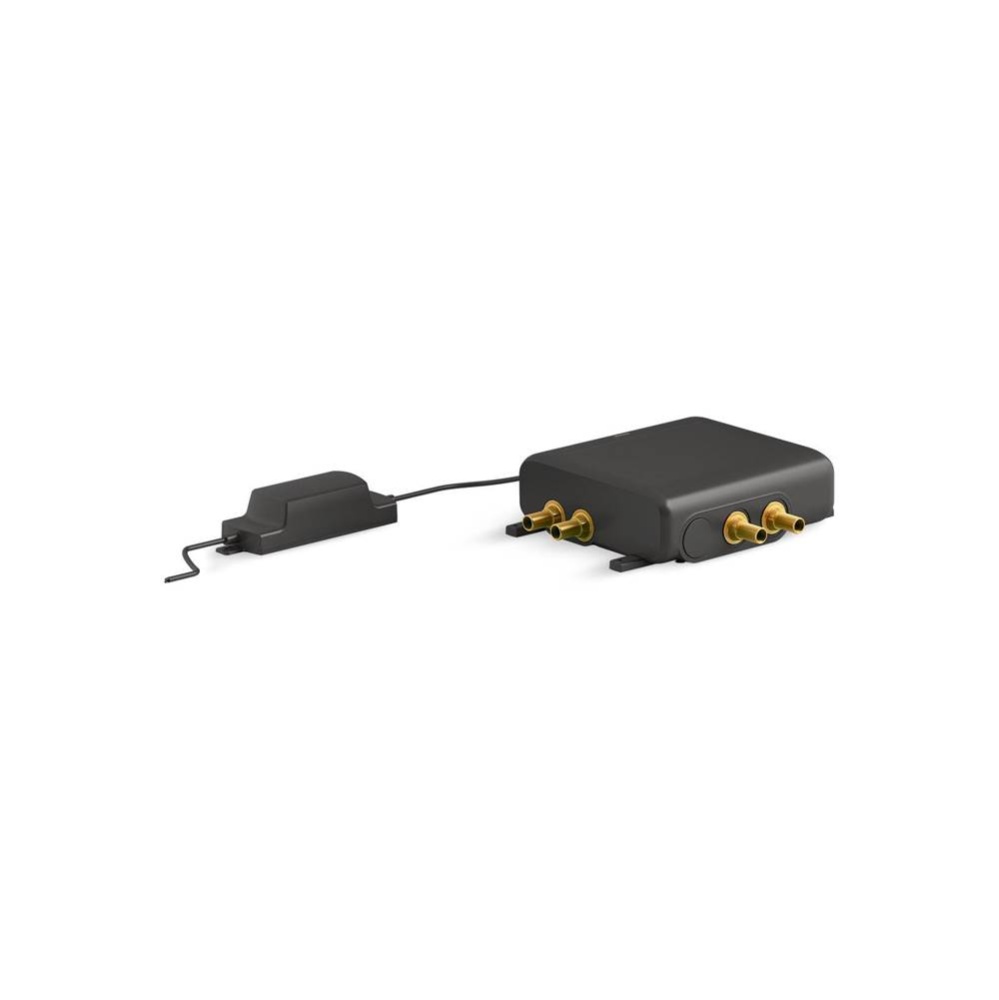

Item Description
Digital thermostatic technology provides accurate, precise and consistent temperature and flow control in your showering system. This precision-engineered, best-in-class digital thermostatic valve is designed for use with the Anthem digital control. Its easy plug-and-play design makes installation simple. With two independently controllable outlet ports, this valve is ideally suited for applications where only one or two shower outlets are required. Optional built-in eco mode lets you use just one outlet at a time to conserve water.

• Item ID: 40ZDM07
• Width:
• Height:
• Extra Data: Antiscald protection, Built-in temperature and flow control, Digitally controlled thermostatic mixing valve, Includes optional flow restrictor, limiting total flow to 1.75 gpm (6.6 lpm), for installations where water conservation or CEC compliance is desired
• Family: Anthem
• Bullet5: Use with the KOHLER Konnect® app to unlock additional Anthem system features, Kohler-developed experiences, and system updates
• Bullet6: Up to 12 gpm (45.4 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 9.5 gpm (36 lpm) from one outlet
• Bullet7: Two independently controllable 1/2'' (13 mm) outlets with brass tube connections
• Bullet8: 1/2'' (13 mm) inlets with brass tube connections
• Country: GB
• Description: Anthem Two-port digital thermostatic valve
• Introduction Date: 1/5/2022
• Material: Polymer
• Prop65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Ship Weight: 7.09
• Shipping Height: 3.75
• Shipping Length: 19.25
• Shipping Width: 12
• Spec Sheet: Spec Sheet
• Website Link: Website Link
• Weight: 7.09

Item Description
Create an elegant, spa-like multi-outlet showering experience with the exposed thermostatic valve and control panel. Influenced by iconic design, the two-way system features an exposed thermostatic valve/control panel and handshower holder. The integrated thermostatic valve/control panel provides a built-in shelf storage and features intuitive push-button and dial controls. This valve kit was designed for use with a single-function rainhead, handshower, and hose (sold separately).

• Item ID: 418CJQ6
• Width:
• Height:
• Finish: Polished Chrome
• Extra Data: Control panel includes adjustable temperature dial with integrated adjustable high-temperature limit feature, shower outlet on/off buttons, and one filter for each outlet with space for up to four filters, Mechanically controlled thermostatic mixing valve maintains outlet temperature throughout shower experience, Modern, simplistic exposed thermostatic valve serves as a hub for shower controls, When pressed once, shower outlet turns on and button pops out, becoming a knob for water flow adjustment
• Family: Anthem
• Bullet5: When pressed back in, water turns off and outlet button aligns with control plate surface; flow setting remains intact
• Bullet6: 1/2'' Universal NPT and direct sweat inlets and outlets
• Bullet7: Requires a single-function rainhead, handshower, and hose (sold separately)
• Country: CN
• Description: Anthem Two-way exposed thermostatic valve and control panel with integrated handshower holder
• Finish Family: Chrome
• Height: 3
• Install Link: Installation Link
• Length: 16.9
• Material: Brass
• Oversized: Yes
• Shape: Oblong
• Ship Weight: 713.09
• Shipping Height: 6.19
• Shipping Length: 24.92
• Shipping Width: 9
• Spec Sheet: Spec Sheet
• Website Link: Website Link
• Width: 14.2
• Standard Finish: Chrome

Item Description
Thermostatic technology allows you to maintain consistent temperature control in your showering system for the ultimate shower experience. This precision-engineered, best-in-class thermostatic valve comes mostly assembled for easy installation and is designed for use with the elegant thermostatic valve control panel trim with recessed push-buttons. With three independently controllable ports, this valve is ideally suited for applications where up to three outlets are required.

• Item ID: 40Z9V71
• Width:
• Height:
• Extra Data: 3/4'' female NPT inlet connections, High-flow thermostatic mixing valve, Mechanically controlled thermostatic mixing valve maintains outlet temperature throughout shower experience, Up to 8 gpm (30.3 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 7 gpm (26.5 lpm) from one outlet
• Family: Anthem
• Bullet10: Includes optional flow restrictor, limiting total flow to 1.75 gpm (6.6 lpm), for installations where water conservation or CEC compliance is desired
• Bullet5: 1/2'' female NPT outlet connections
• Bullet6: Service stops with integral filters
• Bullet7: Antiscald protection
• Bullet8: Integrated adjustable high-temperature limit stop to control maximum water temperature
• Bullet9: Adjustable comfort setting (preset at approximately 104°F)
• Country: CN
• Description: Anthem Three-port recessed mechanical thermostatic valve
• Height: 4.88
• Introduction Date: 1/5/2022
• Length: 6.1
• Material: Brass/Plastic
• Ship Weight: 10.66
• Shipping Height: 7.44
• Shipping Length: 15.32
• Shipping Width: 8.19
• Spec Sheet: Spec Sheet
• Website Link: Website Link
• Weight: 10.66
• Width: 13.96

Item Description
Create an elegant, spa-like multi-outlet showering experience with the exposed thermostatic valve and shower column. Influenced by iconic design, the two-way system features an exposed shower column with thermostatic valve, control panel, and handshower holder. The integrated thermostatic valve/control panel provides a built-in shelf and features intuitive push-button and dial controls. This easy-to-install shower column and valve combo was designed for use with a single-function rainhead, multifunction handshower, and hose (sold separately).

• Item ID: 418CJQA
• Width:
• Height:
• Finish: Polished Chrome
• Extra Data: Control panel includes adjustable temperature dial with integrated adjustable high-temperature limit feature, shower outlet on/off buttons, and one filter for each outlet with space for up to four filters, Mechanically controlled thermostatic mixing valve maintains outlet temperature throughout shower experience, Modern, simplistic exposed thermostatic valve serves as a hub for shower controls, When pressed once, shower outlet turns on and button pops out, becoming a knob for water flow adjustment
• Family: Anthem
• Bullet5: When pressed back in, water turns off and outlet button aligns with control plate surface; flow setting remains intact
• Bullet6: 1/2'' Universal NPT and direct sweat inlets
• Bullet7: Requires a single-function rainhead, handshower, and hose (sold separately)
• Country: CN
• Description: Anthem Two-way exposed thermostatic valve with shower column for rainhead and handshower
• Finish Family: Chrome
• Height: 45.5
• Install Link: Installation Link
• Length: 16.9
• Material: Brass
• Shape: Oblong
• Ship Weight: 23.81
• Shipping Height: 7.6
• Shipping Length: 46.81
• Shipping Width: 21.34
• Spec Sheet: Spec Sheet
• Website Link: Website Link
• Width: 14.2
• Standard Finish: Chrome

Item Description
The innovative Anthem+ digital control puts the control of your custom shower at your fingertips. A sleek, minimalist display lets you configure and control temperature and flow on up to 12 water and steam outlets, creating a personalized showering experience every time. Optional built-in eco mode lets you conserve water by using just one outlet at a time, and the summary screen helps to promote mindful water usage. Pair with KOHLER Konnect® app for additional features, customization, and remote functionality.

• Item ID: 418CNLV
• Width:
• Height:
• Finish: Polished Chrome
• Extra Data: Control steam along with temperature and flow for up to 12 shower outlets from a simple, intuitive interface, Digital control with easy-to-read icons and configurable touch screen, Nine user-definable presets let you save your favorite shower settings, Turn the large KOHLER® dial for easy temperature and flow rate adjustment
• Family: Anthem
• AltImageName1: /KOL/aad52546_rgb.jpg
• AltImagePath1: /KOL-aad52546_rgb.JPEG
• Bullet10: Requires Anthem+ system controller module and an Anthem digital thermostatic valve (sold separately)
• Bullet5: Use with the KOHLER Konnect® app to unlock additional Anthem system features, Kohler-developed experiences, and system updates
• Bullet6: System warm-up and pause feature
• Bullet7: Includes optional flow restrictor, limiting total flow to 1.75 gpm (6.6 lpm), for installations where water conservation or CEC compliance is desired
• Bullet8: Connect up to four controls within your digital shower system
• Bullet9: Pair with optional Anthem remote on/off button (K-28213); sold separately
• Country: CN
• Description: Anthem Digital control
• Finish Family: Chrome
• Height: 2.7
• Install Link: Installation Link
• Length: 8.6
• Ship Weight: 1.1
• Shipping Height: 3.38
• Shipping Length: 12.38
• Shipping Width: 8.44
• Spec Sheet: Spec Sheet
• Warranty: KOHLER® Electronic Faucets, Valves, and Controls Five-Year Limited Warranty
• Website Link: Website Link
• Weight: 1.102
• Width: 1.4
• Standard Finish: Chrome
• Standard Plumbing Category: Showers
• Standard Plumbing Subcategory: Digital Showers

Item Description
The innovative Anthem digital control puts the control of your custom shower at your fingertips. A sleek, minimalist display lets you configure and control your outlets, temperature, and flow, creating a personalized showering experience every time. Optional built-in eco mode lets you conserve water by using just one outlet at a time, and the summary screen helps to promote mindful water usage.

• Item ID: 40ZDM0K
• Width:
• Height:
• Finish: Polished Chrome
• Extra Data: Control temperature, flow, and up to six shower outlets from a simple, intuitive interface, Digital control with easy-to-read icons and configurable touch screen, Nine user-definable presets let you save your favorite shower settings, Turn the large KOHLER® dial for easy temperature and flow rate adjustment
• Family: Anthem
• AltImageName1: /KOL/aad85076.jpg
• AltImageName2: /KOL/aad52546.jpg
• AltImageName3: /KOL/aad95762.jpg
• AltImageName9: /KOL/aad85085.jpg
• AltImagePath1: /KOL-aad85076.JPEG
• AltImagePath2: /KOL-aad52546.JPEG
• AltImagePath3: /KOL-aad95762.JPEG
• AltImagePath9: /KOL-aad85085.JPEG
• Bullet10: Requires an Anthem digital thermostatic valve (K-28209, K-28210, K-28211 or K-28212); sold separately
• Bullet11: Pair with optional Anthem remote on/off button (K-28213); sold separately
• Bullet5: Use with the KOHLER Konnect® app to unlock additional Anthem system features, Kohler-developed experiences, and system updates
• Bullet6: System warm-up and pause feature
• Bullet7: Includes optional flow restrictor, limiting total flow to 1.75 gpm (6.6 lpm), for installations where water conservation or CEC compliance is desired
• Bullet8: Features multiple language options
• Bullet9: Connect up to two controls within your digital shower system
• Country: CN
• Description: Anthem Digital control
• Finish Family: Chrome
• Height: 2.66
• Introduction Date: 1/4/2022
• Length: 1.41
• Material: Plastic
• Ship Weight: 1.79
• Shipping Height: 3.38
• Shipping Length: 12.38
• Shipping Width: 8.44
• Spec Sheet: Spec Sheet
• Website Link: Website Link
• Weight: 2.84
• Width: 8.6
• Standard Finish: Chrome
• Standard Plumbing Category: Showers
• Standard Plumbing Subcategory: Digital Showers

Item Description
Digital thermostatic technology provides accurate, precise, and consistent temperature and flow in your showering system. This precision-engineered, best-in-class digital thermostatic valve is designed for use with the Anthem digital control. Its easy plug-and-play design makes installation simple. With three independently controllable outlet ports, this valve is ideally suited for applications where three shower outlets are required. Optional built-in eco mode lets you use just one outlet at a time to conserve water.

• Item ID: 40ZDM08
• Width:
• Height:
• Extra Data: Antiscald protection, Built-in temperature and flow control, Digitally controlled thermostatic mixing valve, Includes optional flow restrictor, limiting total flow to 1.75 gpm (6.6 lpm), for installations where water conservation or CEC compliance is desired
• Family: Anthem
• Bullet5: Use with the KOHLER Konnect® app to unlock additional Anthem system features, Kohler-developed experiences, and system updates
• Bullet6: Up to 12 gpm (45.4 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 9.5 gpm (36 lpm) from one outlet
• Bullet7: Three independently controllable 1/2'' (13 mm) outlets with brass tube connections
• Bullet8: 1/2'' (13 mm) inlets with brass tube connections
• Country: GB
• Description: Anthem Three-port digital thermostatic valve
• Introduction Date: 1/5/2022
• Material: Polymer
• Prop65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Ship Weight: 7.64
• Shipping Height: 3.75
• Shipping Length: 19.25
• Shipping Width: 12
• Spec Sheet: Spec Sheet
• Website Link: Website Link
• Weight: 7.64

Item Description
This innovative Anthem+ system controller acts as the wiring center and brain for the Anthem showering system, providing connections for every component and powering the digital control. To create an immersive Anthem showering experience, this system controller requires the Anthem+ digital control and an Anthem digital thermostatic valve. Beyond that, everything is customizable — with the option to add up to 12 water outlets, plus steam enhancements.

• Item ID: 418CNL2
• Width:
• Height:
• Extra Data: Automatically checks for software updates (with internet access), Integrated web pages for system set up and configuration using a computer or mobile device connected via router or home network, Provides power to the digital control and manages other connected system devices, Two ports for connecting digital valve(s)
• Family: Anthem
• Bullet10: One jack for power cord connection
• Bullet11: Provides connections for all system components, including steam
• Bullet5: Four ports for system component connections; four ports for Anthem+ digital control connections
• Bullet6: One Ethernet port for hardwire connection to home network, or connect via built-in Wi-Fi
• Bullet7: Features BLUETOOTH® wireless technology for pairing with optional remote on/off button K-28213 (sold separately)
• Bullet8: Use with the KOHLER Konnect® app to unlock additional Anthem system features, Kohler-developed experiences, and system updates
• Bullet9: Provides connection to the KOHLER® Cloud via Wi-Fi
• Country: US
• Description: Anthem System controller module
• Ship Weight: 2.66
• Shipping Height: 2.69
• Shipping Length: 20.13
• Shipping Width: 11.69
• Spec Sheet: Spec Sheet
• Warranty: KOHLER® Electronic Faucets, Valves, and Controls Five-Year Limited Warranty
• Website Link: Website Link
• Weight: 2.658

Item Description
Digital thermostatic technology provides accurate, precise, and consistent temperature and flow control in your showering system. This precision-engineered, best-in-class digital thermostatic valve is designed for use with the Anthem digital control. Its easy plug-and-play design makes installation simple. With four independently controllable outlet ports, this valve is ideally suited for applications where four shower outlets are required, offering two different temperature and flow zones. Optional built-in eco mode lets you use just one outlet at a time to conserve water.

• Item ID: 40ZDM09
• Width:
• Height:
• Extra Data: Allows for two different temperature and flow zones in your shower, Antiscald protection, Built-in temperature and flow control, Digitally controlled thermostatic mixing valve
• Family: Anthem
• Bullet5: Includes optional flow restrictor, limiting total flow to 1.75 gpm (6.6 lpm), for installations where water conservation or CEC compliance is desired
• Bullet6: Use with the KOHLER Konnect® app to unlock additional Anthem system features, Kohler-developed experiences, and system updates
• Bullet7: Up to 22 gpm (83 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 9.5 gpm (36 lpm) from one outlet
• Bullet8: Four independently controllable 1/2'' (13 mm) outlets with brass tube connections
• Bullet9: 3/4'' (19 mm) inlets with brass tube connections
• Country: GB
• Description: Anthem Four-port digital thermostatic valve
• Introduction Date: 1/5/2022
• Material: Polymer
• Prop65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Ship Weight: 11.26
• Shipping Height: 3.44
• Shipping Length: 28.5
• Shipping Width: 11.81
• Spec Sheet: Spec Sheet
• Website Link: Website Link
• Weight: 11.26
