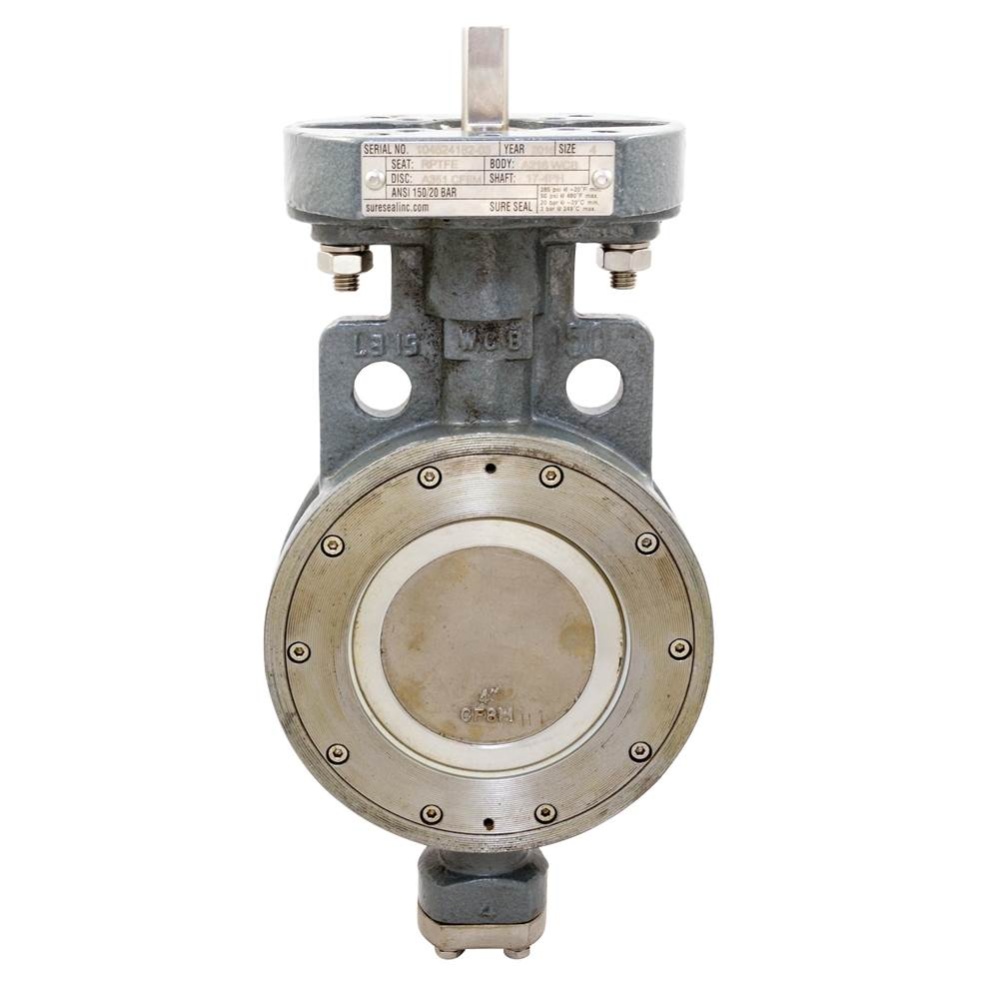

2 HPBFV 150WAF WCB CF8M RPTFE 17-4 BARE
Image may not reflect selected features
2 HPBFV 150WAF WCB CF8M RPTFE 17-4 BARE (S2-G1W-CSSR-B) by Nibco
The wafer type butterfly valve features live loaded adjustable packing with a unique flush-mounted packing gland. The high performance valve includes an arrow on the body to indicate the recommended flow direction. It includes a one-piece, blowout-proof 17-4PH stainless steel stem with 304 stainless steel bushings PTFE coated. Seats are glass reinforced PTFE to provide exceptional chemical and heat resistance. Other features include the powder coated epoxy finish, direct mount actuation, integrally cast disc-stop and dual offset design. Please refer to Sure Seal technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose Sure Seal® high performance butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. Sure Seal® high performance butterfly valves are backed by the Sure Seal 5-year 125% limited warranty.
Product Specification
Item #
S2-G1W-CSSR-B
Dimensions
Additional product details
Vendor Item #
S2-G1W-CSSR-B
Plumbing Category
Plumbing Supplies
Plumbing Subcategory
Valves
Bullet10
MSS SP-68 (design) 100% production tested
Bullet11
MSS SP-25 (markings)
Bullet12
API 609 seat pressure/temperature ratings/blow-out proof stem
Bullet13
ASME/ANSI B16.34A, body pressure/temperature ratings
Bullet14
ASME/ANSI B16.5 flange dimensions
Bullet15
ISO 5211 EN 12116 actuator mounting top works
Bullet16
ANSI Class 150
Bullet5
Stainless steel disc and stem
Bullet6
Integrally cast disc stop
Bullet7
Dual offset design
Bullet8
Direct mount actuation
Bullet9
Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator and pneumatic/electric automation
Country
USA
Description
The Sure Seal Class 150 high performance wafer style butterfly valve features a carbon steel body with stainless steel trim. It is ideally suited for commercial, industrial and mechanical HVAC services. The valve performs isolation and throttling services
Height
4.270
Install Link
Length
11.190
Made to Order
MTO
MadeInUSA
Yes
Minimum Order Quantity
1.000
Prop65
This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
UOM
Each
Weight
10.010
Width
5.260
Manufactured By
Nibco
Call for Price
Qty:
BASE PRICE:
$
1802
00
/ / 1
($1802.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer availability unknown.
