6 HPBFV 150LUG WCB CF8M RPTFE 17-4 GL

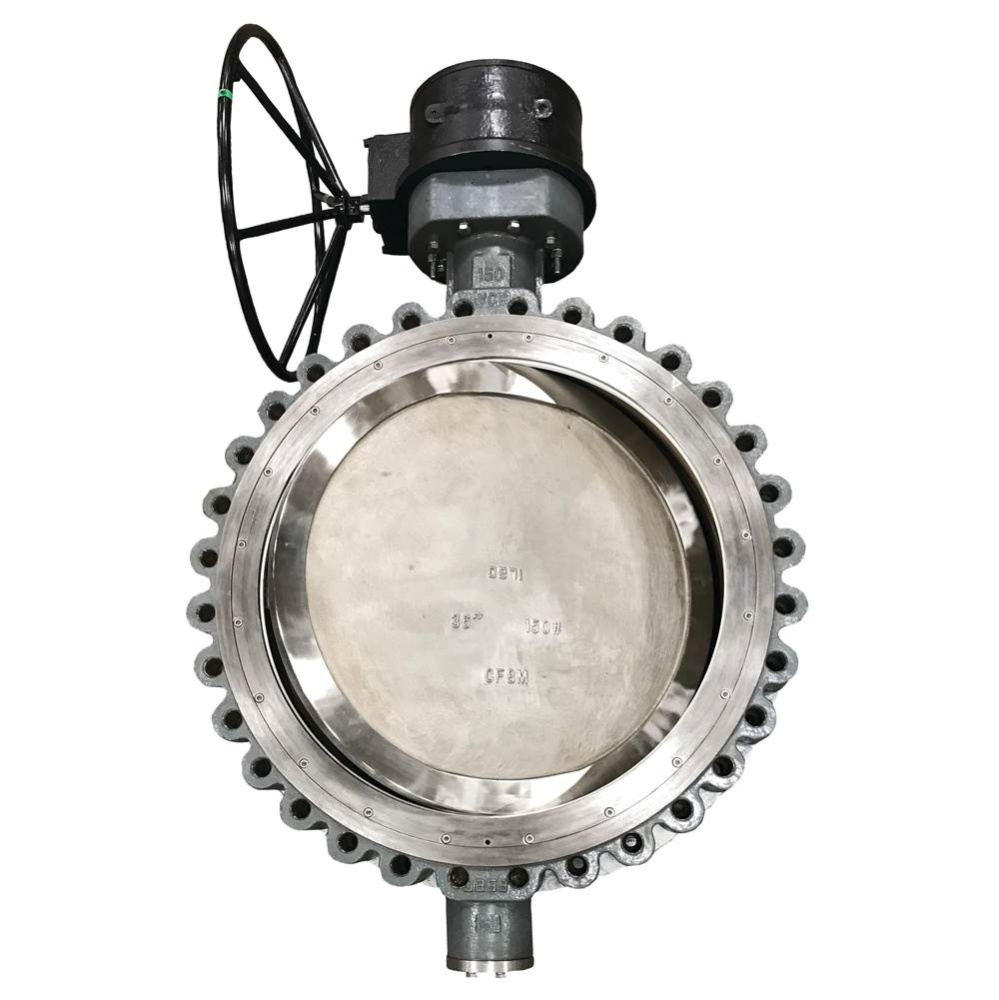

Image may not reflect selected features
6 HPBFV 150LUG WCB CF8M RPTFE 17-4 GL (S6-G1L-CSSR-GL) by Nibco
The lug type butterfly valve features live loaded adjustable packing with a unique flush-mounted packing gland. The high performance valve also provides bi-directional dead-end service and includes an arrow on the body to indicate the recommended flow direction. Seats are glass reinforced PTFE to provide exceptional chemical and heat resistance. Other features include the powder coated epoxy finish, direct mount actuation, integrally cast disc-stop and dual offset design, one-piece, blowout-proof 17-4PH stainless steel stem with 304 stainless steel bushings PTFE coated. Please refer to Sure Seal technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose Sure Seal high performance butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. Sure Seal high performance butterfly valves are backed by the Sure Seal 5-year 125 Percent limited warranty.
Product Specification
Item #
S6-G1L-CSSR-GL
Dimensions
Additional product details
Vendor Item #
S6-G1L-CSSR-GL
AltImageName1
/NBC/WEBIMAGE-G1L-SSSR_36INCH.jpg
AltImageName2
/NBC/THUL-G1L-SSSR_36INCH.jpg
AltImagePath1
/NBC-WEBIMAGE-G1L-SSSR_36INCH.JPEG
AltImagePath2
/NBC-THUL-G1L-SSSR_36INCH.JPEG
Bullet10
Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator and pneumatic/electric automation
Bullet11
MSS SP-68 (design) 100 percent production tested
Bullet12
MSS SP-25 (markings)
Bullet13
API 609 seat pressure/temperature ratings/blow-out proof stem
Bullet14
ASME/ANSI B16.34A, body pressure/temperature ratings
Bullet15
ASME/ANSI B16.5 flange dimensions
Bullet16
ISO 5211 EN 12116 actuator mounting top works
Bullet17
ANSI Class 150
Bullet5
Blowout-proof stem
Bullet6
Stainless steel disc and stem
Bullet7
Integrally cast disc stop
Bullet8
Dual offset design
Bullet9
Direct mount actuation
Country
USA
Description
The Sure Seal Class 150 high performance lug style butterfly valve features a carbon steel body with stainless steel trim. It is ideally suited for commercial, industrial and mechanical HVAC services. The valve performs isolation and throttling services in
Height
8
Install Link
Length
20.42
Made to Order
Yes
Minimum Order Quantity
1
Prop65
This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
UOM
Each
Weight
51.01
Width
9.83
Manufactured By
Nibco
