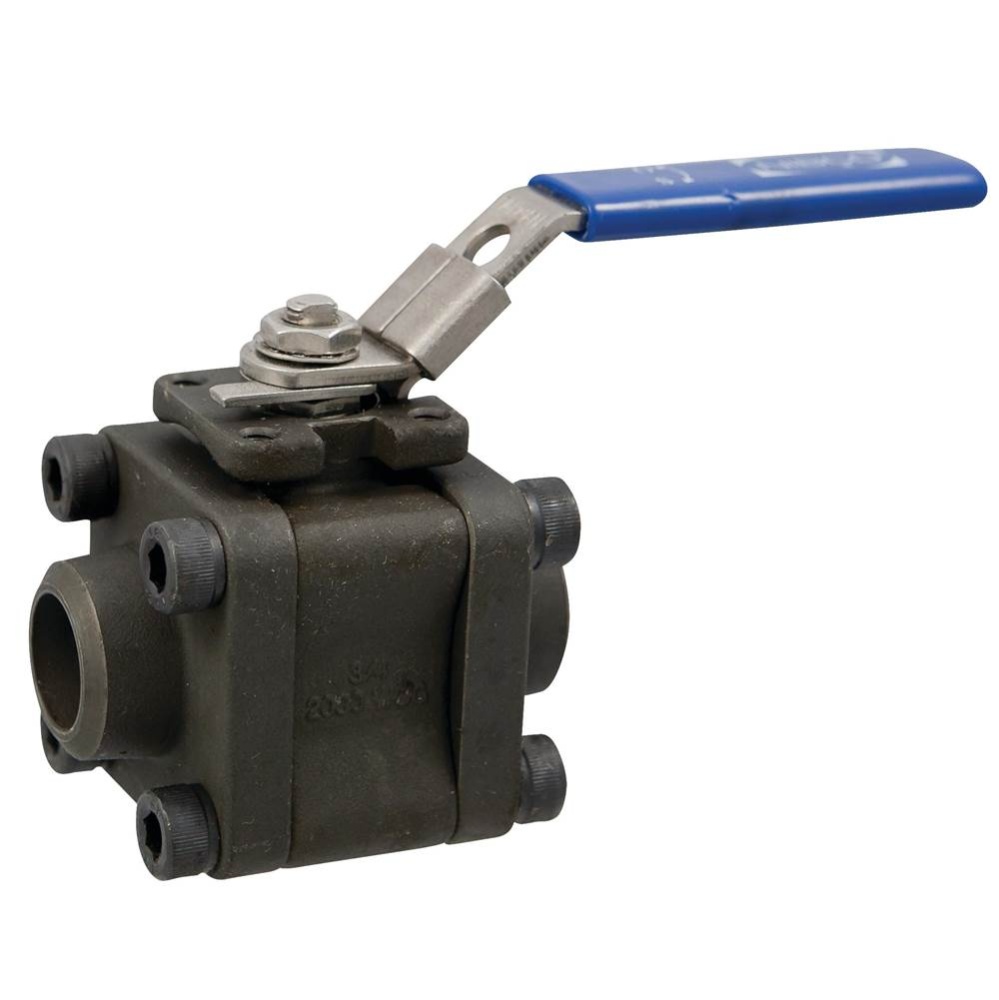

BM590CSR66FSLL 11/4 CS BW 3PC W/MT FS LL : NL9701B

The NIBCO® carbon steel ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The reinforced PTFE 15% glass seat ring, Graphite stem packing and stainless steel ball/stem exhibits high chemical resistance properties and is recommended for process piping. The valve also features an enclosed bolt design. The three-piece valve is recommended for petrochemical, utility service applications. Please refer to NIBCO technical data sheets, valve selection guides, chemical resistance guide and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO® ball valves are backed by the exclusive NIBCO INC. 5-year 125% limited warranty.

Product Specification

Item #

NL9701B

Dimensions

Additional product details

Vendor Item #

NL9701B

Plumbing Category

Plumbing Supplies

Plumbing Subcategory

Valves

Bullet10

Locking lever handle

Bullet11

Butt weld end connections

Bullet12

Conforms to MSS SP-110

Bullet13

API-607 Fourth Edition Fire Safe

Bullet14

API-608 Anti-Static

Bullet5

Enclosed bolt design

Bullet6

Reinforced PTFE seats

Bullet7

Stainless steel ball and stem

Bullet8

Cast ISO mounting pad

Bullet9

Vented ball

Country

Taiwan

Description

The NIBCO carbon steel ball valve provides bubble-tight shutoff at 2000 PSI. This valve is available with butt weld pipe connections and cast ISO mounting pad for actuation purposes. It meets Fire Safe and Anti-Static requirements. This valve features a st

Height

2.900

Install Link

Installation Link

Length

7.860

Material

Carbon Steel

Minimum Order Quantity

1.000

Ship Weight

22.4

Spec Sheet

UOM

Each

Weight

5.600

Width

5.090

Manufactured By

Nibco

Call for Price

Qty:

BASE PRICE:

865

/ / 1

($865.00 / 1)

Add To Cart

Add To Estimate

Add To Wishlist

Save To Compare

Availability:

Manufacturer availability unknown.
