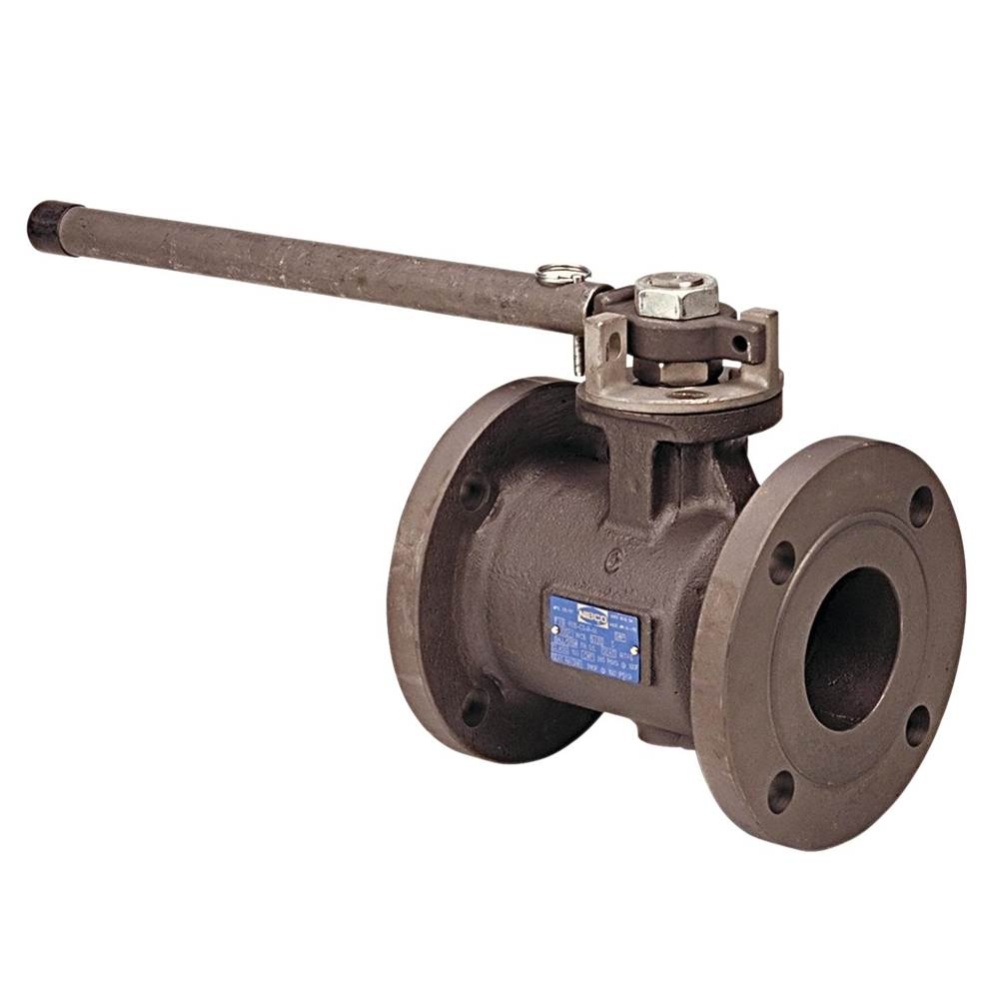

F510CSR66FS 1/2 FLG BALL LEV HNDL F/S CS : NG10406

The NIBCO carbon steel ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The valve is equipped with mounting pad for actuation purposes. The reinforced PTFE seat ring, graphite and braided graphite stem packing and stainless steel ball/stem exhibit high chemical resistance properties. Please refer to NIBCO technical data sheets, valve selection guides, chemical resistance guide and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO ball valves are backed by the exclusive NIBCO INC. 5-year 125 Percent limited warranty.

Product Specification

Item #

NG10406

Dimensions

Additional product details

Vendor Item #

NG10406

Plumbing Category

Plumbing Supplies

Plumbing Subcategory

Valves

AltImageName1

/NBC/webimage-F-510-CS-R-66.jpg

AltImageName2

/NBC/thul-F-510-CS-R-66.jpg

AltImagePath1

/NBC-webimage-F-510-CS-R-66.JPEG

AltImagePath2

/NBC-thul-F-510-CS-R-66.JPEG

Bullet10

Class 150 flanged end connections

Bullet11

Conforms to MSS SP-72

Bullet12

API-607 Fourth Edition Fire Safe

Bullet13

API-608 Anti-Static

Bullet5

Stainless steel ball and stem

Bullet6

Mounting pad

Bullet7

Fire safe

Bullet8

Vented ball

Bullet9

Locking handle or manual gear operator

Country

USA

Description

The NIBCO carbon steel, Class 150 flanged end ball valve provides bubble-tight shutoff at 285 PSI. The one-piece valve is recommended for industrial, petrochemical, utility service applications. It conforms to Fire Safe and Anti-Static requirements and is

Height

3.52

Install Link

Installation Link

Length

8.62

MadeInUSA

Yes

Material

Carbon Steel

Minimum Order Quantity

Prop65

This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Spec Sheet

UOM

Each

Weight

4.51

Width

4.69

Manufactured By

Nibco
