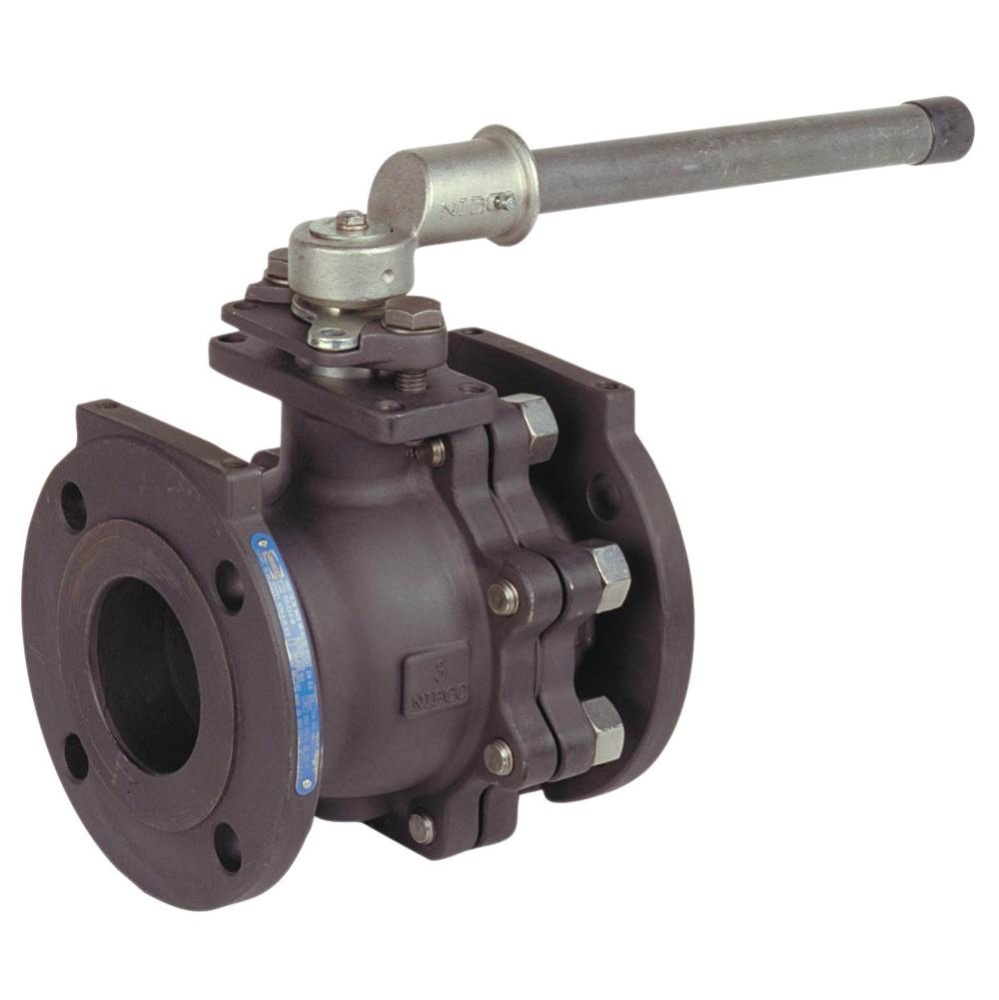

F515CSF66FS 1/2 FLG BALL LEV HNDL F/S CS : NG306F6

The NIBCO® carbon steel ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The valve is equipped with mounting pad for actuation purposes. The carbon filled PTFE seat ring, graphite and braided graphite stem packing and stainless steel ball and stem exhibit high chemical resistance properties. Please refer to NIBCO technical data sheets, valve selection guides, chemical resistance guide and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO® ball valves are backed by the exclusive NIBCO INC. 5-year 125% limited warranty.

Product Specification

Item #

NG306F6

Dimensions

Additional product details

Vendor Item #

NG306F6

Plumbing Category

Plumbing Supplies

Plumbing Subcategory

Valves

Bullet10

Class 150 flanged end connections

Bullet11

Conforms to MSS SP-72

Bullet12

API-607 Fourth Edition Fire Safe

Bullet13

API-608 Anti-Static

Bullet5

Stainless steel ball and stem

Bullet6

Multiple V-ring packing

Bullet7

Mounting pad

Bullet8

Vented ball

Bullet9

Locking handle or manual gear operator

Country

USA

Description

The NIBCO carbon steel, flanged end ball valve provides bubble-tight shutoff at 285 PSI. The one-piece valve is recommended for industrial, petrochemical, utility service applications. It conforms to Fire Safe and Anti-Static requirements and is tested to

Height

3.500

Install Link

Installation Link

Length

8.030

MadeInUSA

Yes

Material

Carbon Steel

Minimum Order Quantity

1.000

Prop65

This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Spec Sheet

UOM

Each

Weight

3.905

Width

5.270

Manufactured By

Nibco
