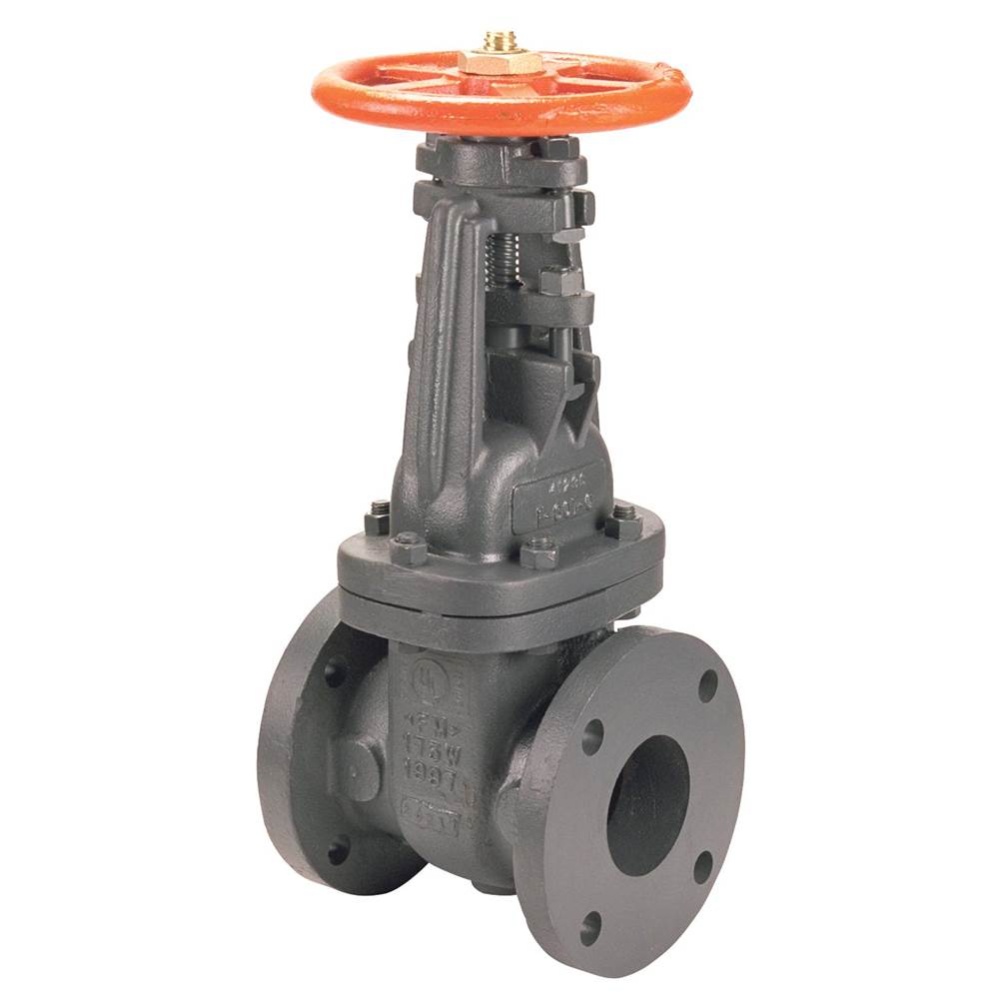

F607OTS 2-1/2 FLG UL/FM GATE (NH24L0E)
by Nibco
The cast iron gate valve features a Class 125 flanged, flat face end connection for easy installation and accessibility. Outside screw and yoke (OS&Y) gate valves are recommended when positive shutoff and a quick visual indicator of open/closed position is required. This valve features a pre-grooved stem for tamper switch mounting. It is listed by Underwriters Laboratories of the US and Canada (UL/ULC) and FM Approved. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® gate valves for the most specified, versatile and economical valve option in commercial, mechanical, fire protection and industrial applications. NIBCO® pressure rated valves are backed by the NIBCO 5-year 125% limited warranty.
Product Specification
Item #
NH24L0E
Dimensions
Additional product details
Vendor Item #
NH24L0E
Plumbing Category
Plumbing Supplies
Plumbing Subcategory
Valves
AltImageName1
/NBC/F607OTS.jpg
AltImageName2
/NBC/F607OTS.jpg
AltImagePath1
/NBC-F607OTS.JPEG
AltImagePath2
/NBC-F607OTS.JPEG
Bullet10
FM Approved
Bullet11
Approved by New York City BSA 143-69-SA
Bullet5
Iron body, bronze mounted trim (IBBM)
Bullet6
Class 125 flanged end connections
Bullet7
Use in U.S. drinking water applications is prohibited after January 3, 2014
Bullet8
Conforms to MSS SP-70
Bullet9
Listed by UL/ULC (UL262)
Country
USA
Description
The NIBCO cast iron gate valve provides full flow with minimal pressure drop. The NIBCO flanged cast iron gate valve is designed to be the main control valve in an automatic fire sprinkler system.
Height
8.000
Install Link
Length
20.750
MadeInUSA
Yes
Material
Cast Iron
Minimum Order Quantity
1.000
Prop65
This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Ship Weight
54.723
Spec Sheet
UOM
Each
Weight
54.723
Width
8.000
Manufactured By
Nibco
Call for Price
BASE PRICE:
$
1573
00
/
/ 1
($1573.00 / 1)
