F65BC-V 1/2 FLG TU BALL CK FKM RPVDF
Image may not reflect selected features

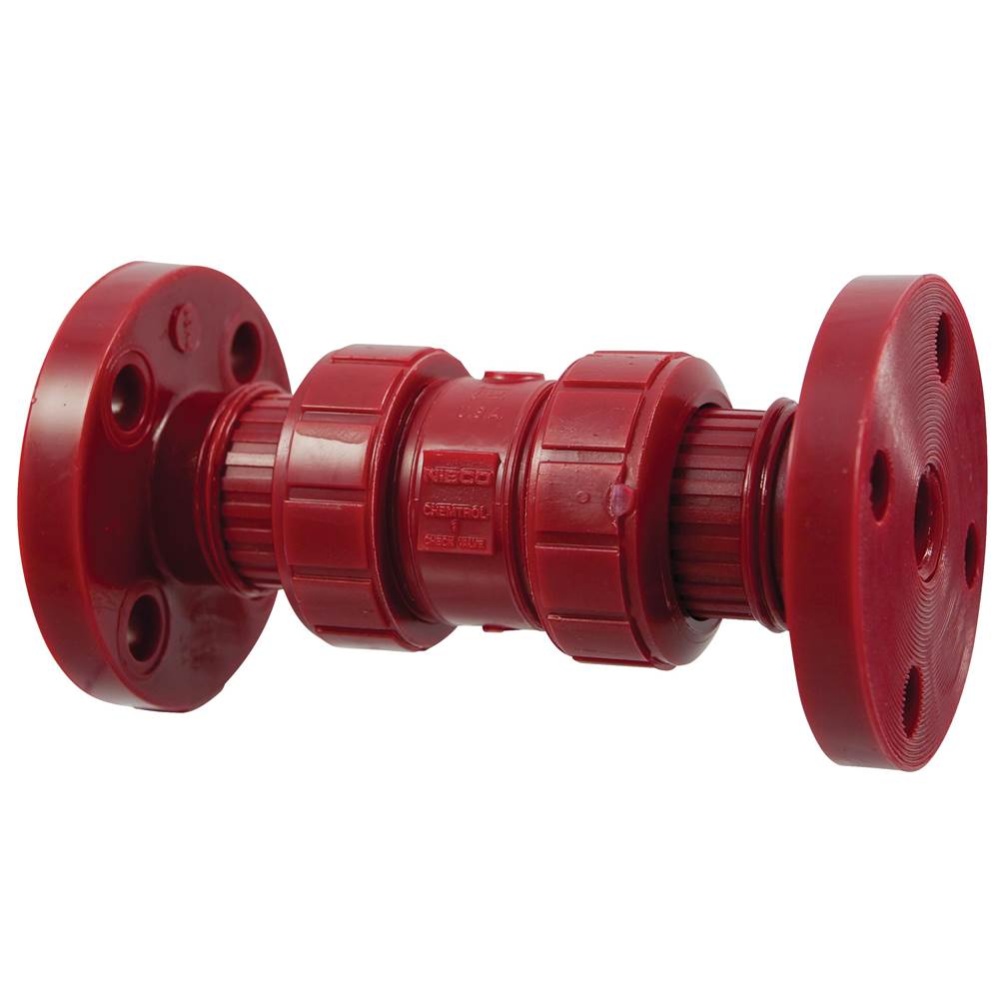

F65BC-V 1/2 FLG TU BALL CK FKM RPVDF (MD802A6) by Nibco
The original Chemtrol® True Union design allows the valve and operational components to be conveniently lifted from the piping system for repair or replacement. The valve can be easily joined with the flanged end connections. Please refer to Chemtrol technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Chemtrol® Kynar® red PVDF exhibits superior strength, working temperature and chemical resistance characteristics. Red pigment provides UV protection. Kynar® PVDF offers versatile chemical resistance to slats, strong acids, dilute bases and many organic solvents such as aromatics, aliphadics and chlorinated groups. PVDF is also ideally suited for handling wet or dry chlorine bromine and other halogens. Choose Chemtrol® valves for the most reliable, versatile and economical valve option in commercial and industrial applications. Chemtrol® ball check valves are backed by a 1-year limited warranty. Because Chemtrol® is a NIBCO brand the flow-control valves are unsurpassed in quality, performance and longevity.
Product Specification
Item #
MD802A6
Dimensions
Additional product details
Vendor Item #
MD802A6
Finish
Red
Plumbing Category
Plumbing Supplies
Plumbing Subcategory
Valves
AltImageName1
/NBC/F65BC.jpg
AltImageName2
/NBC/F65BC.jpg
AltImagePath1
/NBC-F65BC.JPEG
AltImagePath2
/NBC-F65BC.JPEG
Bullet5
Flanged end connections compatible with ANSI B16.5 Class 150
Bullet6
Do not use or test with compressed air or other gases
Bullet7
ASTM D3222 Type I material
Country
USA
Description
The Chemtrol True Union ball check valve stops the flow of media in one direction while allowing flow in the opposite direction, with minimum turbulence and chatter while maintaining pump prime. The valve's injection molded red Kynar polyvinylidene flu
Disclaimer
Kynar pecent is a registered trademark of Arkema Inc. Chemtrol pecent is a registered trademark of NIBCO INC.
Finish Family
Solid Colors
Height
3.500
Length
6.270
Low Lead
Yes
Made to Order
MTO
MadeInUSA
Yes
Material
Polyvinylidene Fluoride (aka Kynar(R) )
Minimum Order Quantity
1.000
Ship Weight
1.149
Shipping Height
4.25
Shipping Length
6.875
Shipping Width
6.125
Spec Sheet
UOM
Each
Weight
0.946
Width
3.500
Manufactured By
Nibco
Finish
Additional options that would change other selections
Call for Price
Qty:
BASE PRICE:
$
1396
00
/ / 1
($1396.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer availability unknown.
