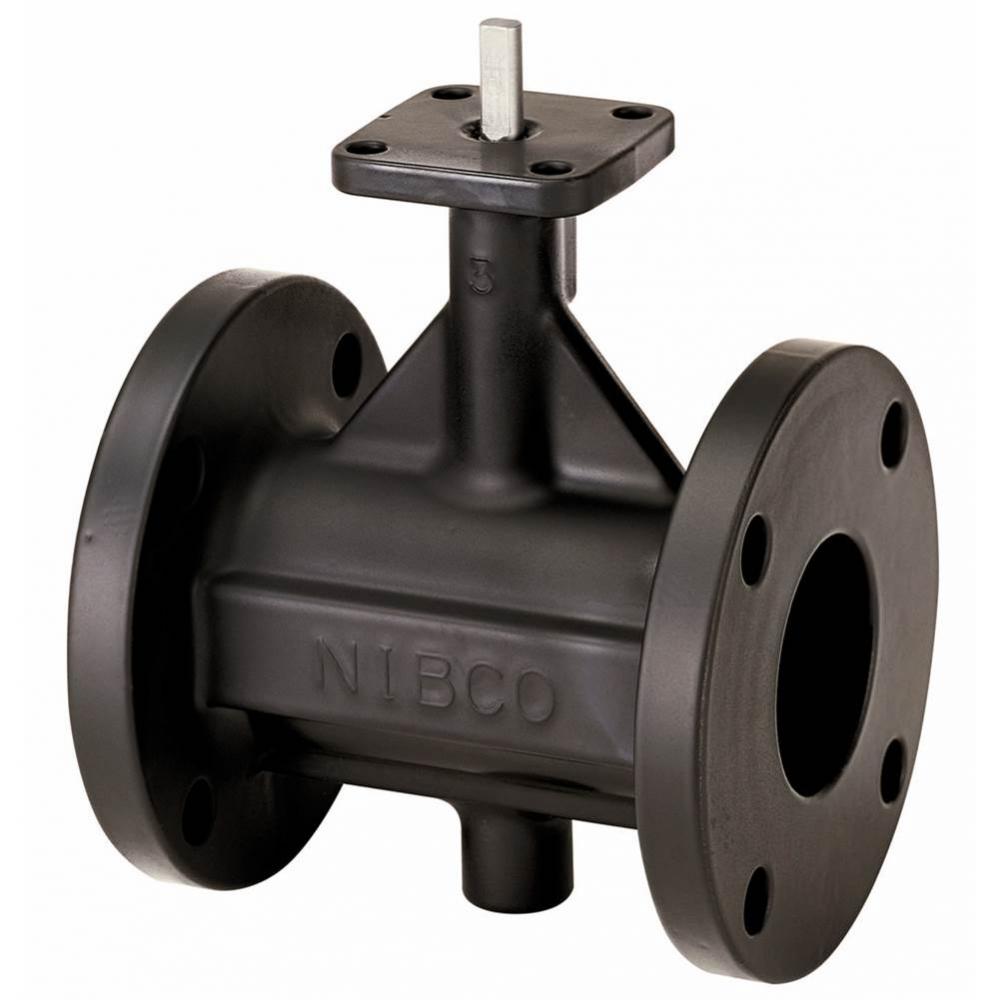

FC27650 2 1/2 FBFV (BARE STEM/FLAT FLG) : NLFF00E

The NIBCO® cast iron butterfly valve provides ease of operation with quarter-turn (90 degrees) open to close. The internal stem/disc splined drive design eliminates the need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 inches. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® ductile and cast iron butterfly valves for the most specified, versatile and economical valves option in commercial, mechanical and industrial applications. NIBCO® butterfly valves are backed by the NIBCO 5-year 125% limited warranty.

Product Specification

Item #

NLFF00E

Dimensions

Additional product details

Vendor Item #

NLFF00E

Plumbing Category

Plumbing Supplies

Plumbing Subcategory

Valves

AltImageName1

/NBC/FC27650;FC27653;FC27655.jpg

AltImageName2

/NBC/FC27650;FC27653;FC27655.jpg

AltImagePath1

/NBC-FC27650;FC27653;FC27655.JPEG

AltImagePath2

/NBC-FC27650;FC27653;FC27655.JPEG

Bullet10

Certified to NSF/ANSI/CAN 372-2020, Drinking Water System Components – Health Effects

Bullet5

Stainless steel stem with metal bushings

Bullet6

Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator

Bullet7

Not recommended for steam service

Bullet8

Designed to meet MSS SP-67

Bullet9

MSS SP-25 (markings)

Country

USA

Description

The NIBCO flanged end flat faced type butterfly valve provides bubble-tight shutoff at 200 PSI. The valve is an excellent substitute for a gate valve installed in water (200F or lower) applications, commercial and some light industrial process applications

Height

7.000

Install Link

Installation Link

Length

10.530

Made to Order

MTO

MadeInUSA

Yes

Material

Cast Iron

Minimum Order Quantity

1.000

Prop65

This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Ship Weight

24.864

Shipping Height

12.375

Shipping Length

8.5

Shipping Width

7.875

Spec Sheet

UOM

Each

Weight

24.020

Width

7.500
