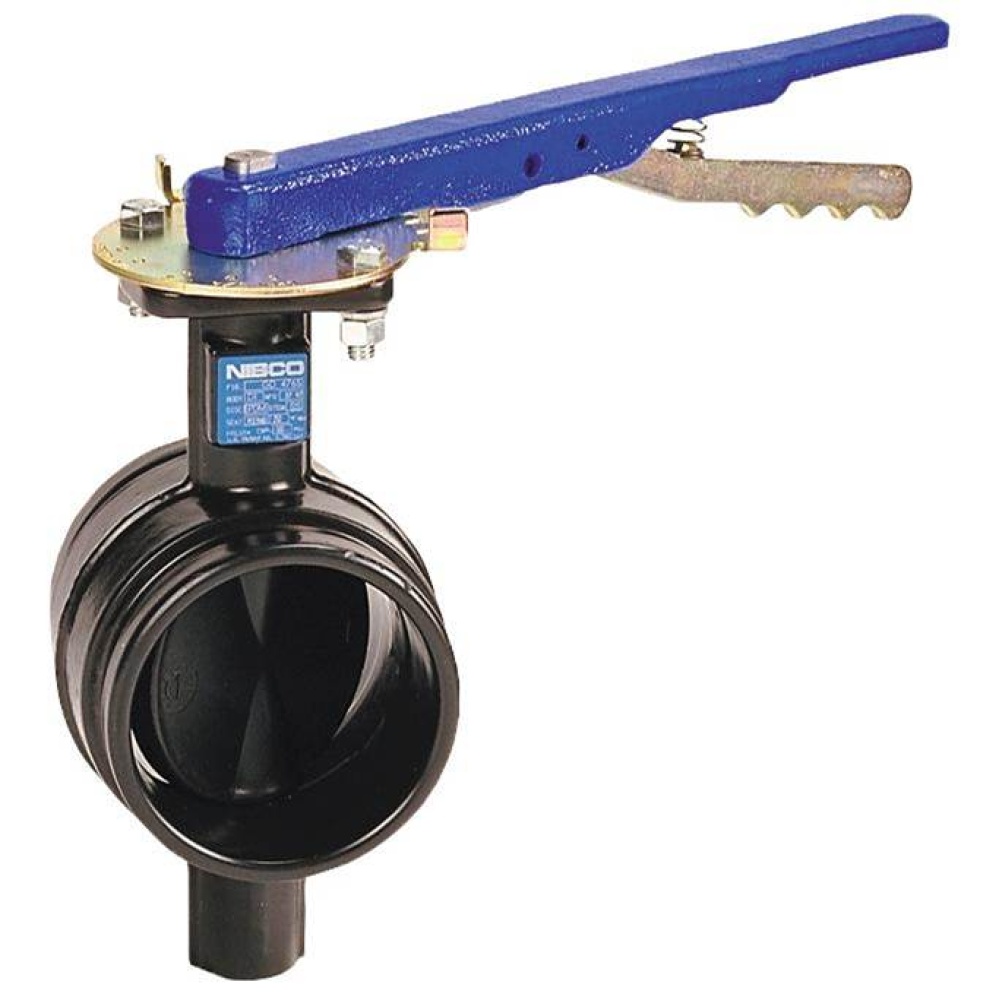

GD47651 3 GRV BFV OLD STY TOP WORKS D I : NLK675F

The NIBCO® ductile iron butterfly valve provides ease of operation with quarter-turn (90 degrees) open to close. The valve features an EPDM encapsulated ductile iron disc. The internal stem/disc splined drive design eliminates the need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 inches. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® ductile iron butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® butterfly valves are backed by the NIBCO 5-year 125% limited warranty.

Product Specification

Item #

NLK675F

Dimensions

Additional product details

Vendor Item #

NLK675F

Plumbing Category

Plumbing Supplies

Plumbing Subcategory

Valves

AltImageName1

/NBC/GD47653;GD4765-5.jpg

AltImageName2

/NBC/GD47653;GD4765-5.jpg

AltImagePath1

/NBC-GD47653;GD4765-5.JPEG

AltImagePath2

/NBC-GD47653;GD4765-5.JPEG

Bullet10

MSS SP-25 (markings)

Bullet5

Extended neck for up to 2” of insulation

Bullet6

Operating mechanism: bare stem, lever lock and manual gear operator

Bullet7

Not recommended for steam service

Bullet8

NSF/ANSI/CAN-61 and 372

Bullet9

Designed to meet MSS SP-67

Country

USA

Description

The NIBCO grooved end NSF third party certified butterfly valve provides bubble-tight shutoff at 300psi. Grooved ends are compatible with IPS pipe. These valves are ideal in grooved steel pipe systems for commercial and some light industrial process applic

Height

6.200

Install Link

Installation Link

Length

12.880

MadeInUSA

Yes

Material

Ductile Iron

Minimum Order Quantity

1.000

Prop65

This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Ship Weight

7.137

Shipping Height

5.125

Shipping Length

12.875

Shipping Width

8.75

Spec Sheet

UOM

Each

Weight

6.595

Width

9.170

Manufactured By

Nibco
