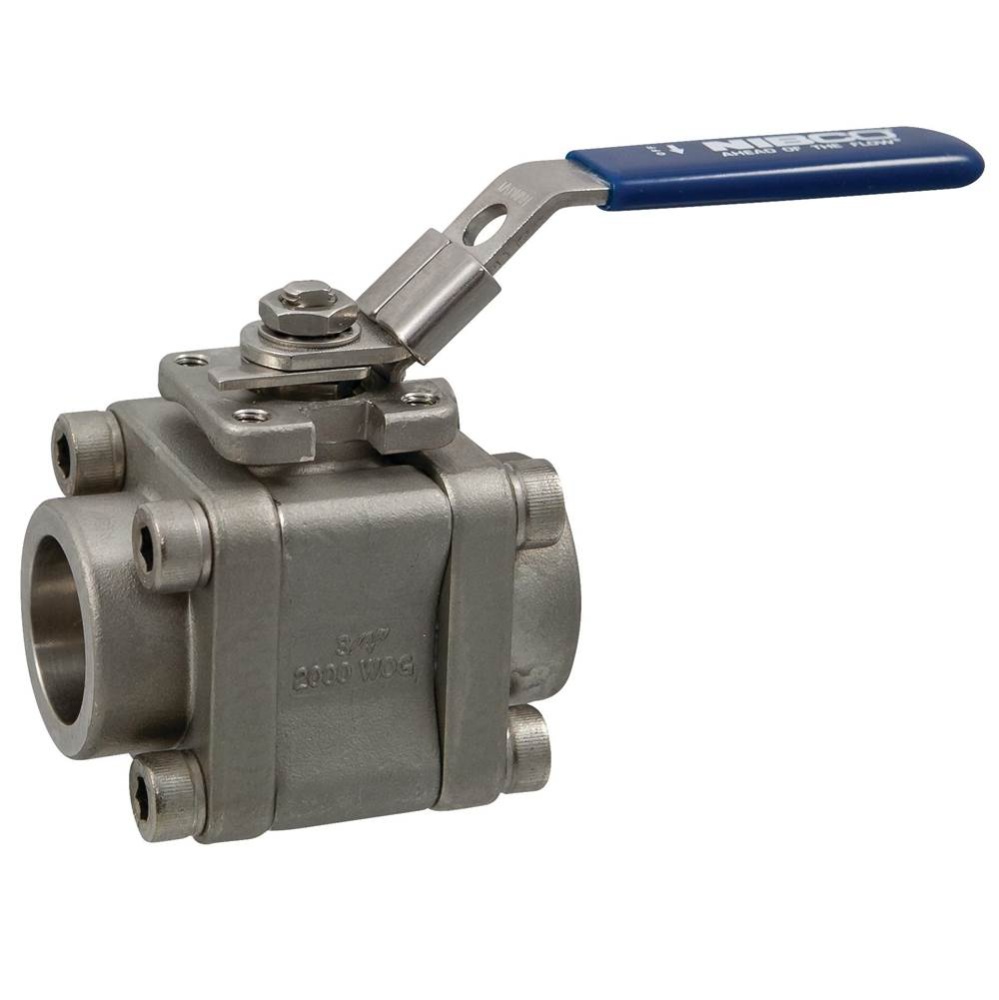

KM590S6R66FSLL 1 SS SW 3PC W/MT FS LL (NL9732A)
by Nibco
The NIBCO® ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The reinforced PTFE 15% glass seat ring, Graphite stem packing and stainless steel ball/stem exhibit high chemical resistance properties and are recommended for process piping. It also features enclosed bolt design. Please refer to NIBCO technical data sheets, valve selection guides, chemical resistance guide and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO® ball valves are backed by the exclusive NIBCO INC. 5-year 125% limited warranty.
Product Specification
Item #
NL9732A
Dimensions
Additional product details
Vendor Item #
NL9732A
Plumbing Category
Plumbing Supplies
Plumbing Subcategory
Valves
Bullet10
Locking lever handle
Bullet11
Socket weld ISO mount end connections
Bullet12
Conforms to MSS SP-110
Bullet13
Actuator mount per ISO 5211
Bullet14
API-608 Anti-Static
Bullet5
Reinforced PTFE seats
Bullet6
Stainless steel ball and stem
Bullet7
Blowout-proof stem
Bullet8
Cast ISO mounting pad
Bullet9
Vented ball
Country
Taiwan
Description
The NIBCO stainless steel ball valve provides bubble-tight shutoff at 2000 PSI. This valve is available with socket weld pipe connections and cast ISO mounting pad for actuation purposes. The three-piece valve is recommended for petrochemical, utility serv
Height
2.650
Install Link
Length
6.670
Material
Stainless Steel
Minimum Order Quantity
1.000
Ship Weight
28.8
Spec Sheet
UOM
Each
Weight
3.600
Width
4.510
Manufactured By
Nibco
