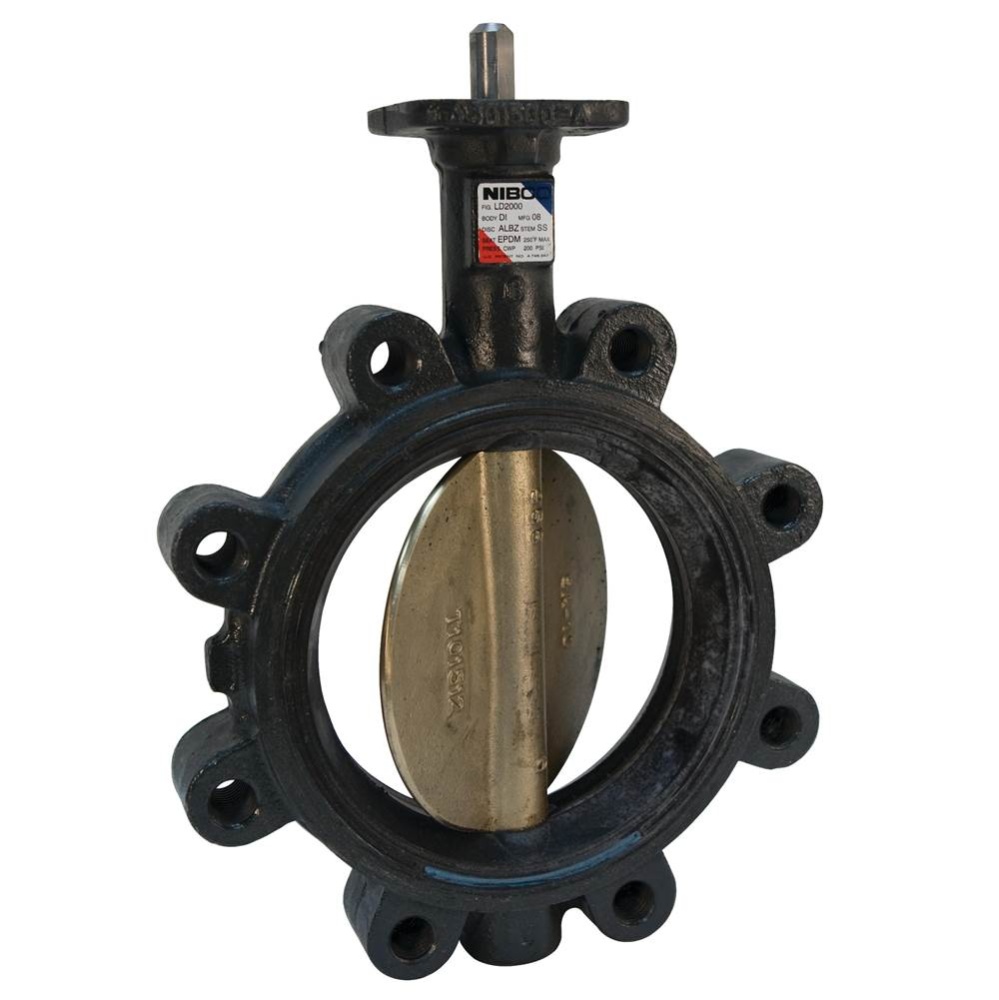

LD20000 5 LUG BFV BARE STEM DUCTILE IRON : NLG090J

The NIBCO® ductile iron lug butterfly valve provides ease of operation with quarter-turn (90 degrees) open to close. With the internal stem/disc geometric drive design, there is no need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 inches. The unique molded-in EPDM seat liner with aluminum bronze disc is recommended for most water applications. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® butterfly valves are backed by the NIBCO 5-year 125% limited warranty.

Product Specification

Item #

NLG090J

Dimensions

Additional product details

Vendor Item #

NLG090J

Plumbing Category

Plumbing Supplies

Plumbing Subcategory

Valves

AltImageName1

/NBC/LD20003.jpg

AltImageName2

/NBC/LD20003.jpg

AltImagePath1

/NBC-LD20003.JPEG

AltImagePath2

/NBC-LD20003.JPEG

Bullet10

Designed to meet MSS SP-67

Bullet11

MSS SP-25 (markings)

Bullet12

Designed to meet API 609

Bullet13

U.S. Coast Guard Category A

Bullet14

California Health and Safety Code Section 116875

Bullet15

Vermont Act 193

Bullet5

Aluminum bronze disc

Bullet6

Stainless steel stem with copper bushings

Bullet7

Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator and pneumatic/electric automation

Bullet8

Lead-free*

Bullet9

Not recommended for steam service

Description

The NIBCO lug type butterfly valve provides bi-directional dead-end service without a downstream flange, and bubble-tight shutoff at 200 PSI. The valve is ideal for commercial and some light industrial process applications, including HVAC and vacuum servic

Height

3.250

Install Link

Installation Link

Length

13.380

Low Lead

Yes

MadeInUSA

Yes

Material

Ductile Iron

Minimum Order Quantity

1.000

Prop65

This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Ship Weight

22.066

Shipping Height

Shipping Length

15.125

Shipping Width

Spec Sheet

UOM

Each

Weight

20.906

Width

10.000

Manufactured By

Nibco

Call for Price

Qty:

BASE PRICE:

979

/ / 1

($979.00 / 1)

Add To Cart

Add To Estimate

Add To Wishlist

Save To Compare

Availability:

Manufacturer availability unknown.
