LD20103 4 200PSI/EPDM/DI DISC/LHNDL (NLG761H)
by Nibco

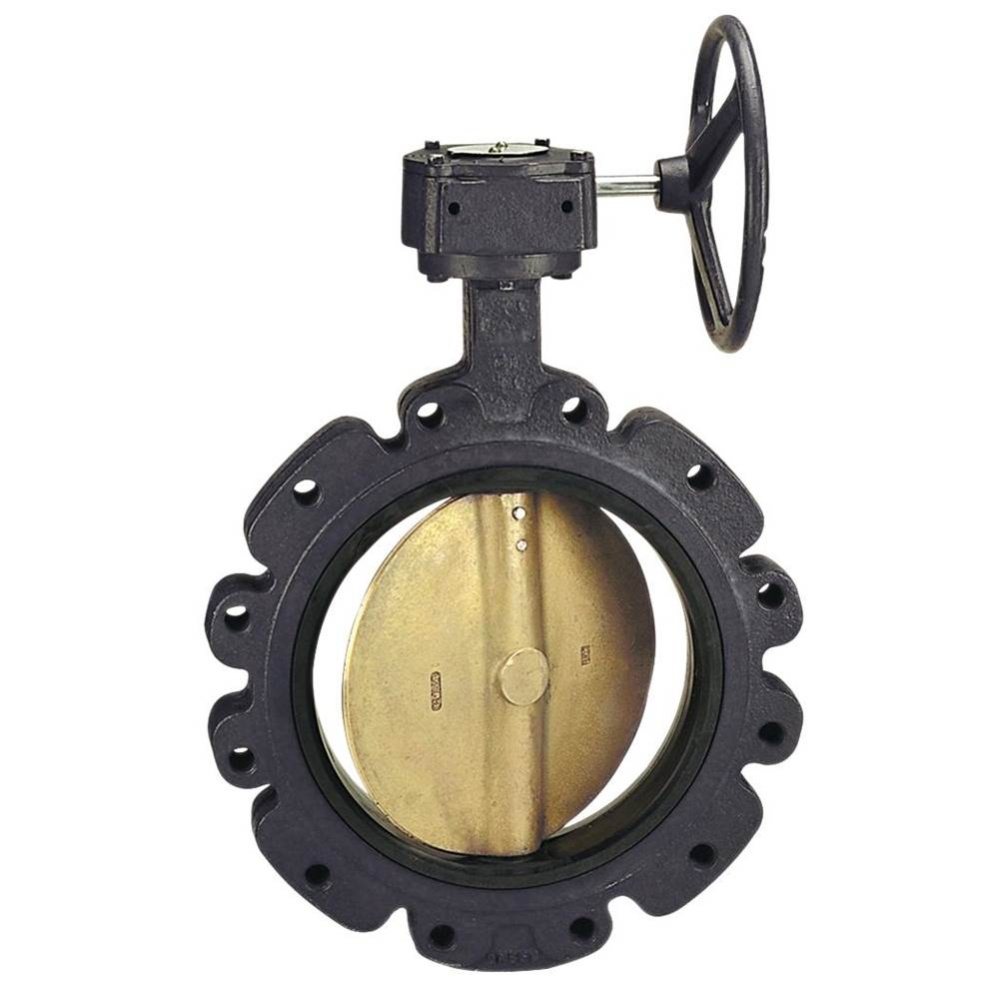

The NIBCO ductile iron butterfly valve provides ease of operation with quarter-turn (90 degrees) open to close. The EPDM cartridge liner with ductile iron, electro nickel plated disc is recommended for most water applications. An extended neck allows for insulation up to 2 inches. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO butterfly valves are backed by the NIBCO 5-year 125 Percent limited warranty.
Product Specification
Item #
NLG761H
Dimensions
Additional product details
Vendor Item #
NLG761H
Plumbing Category
Plumbing Supplies
Plumbing Subcategory
Valves
AltImageName1
/NBC/webimage-LD-1000-5.jpg
AltImageName2
/NBC/thul-LD-1000-5.jpg
AltImagePath1
/NBC-webimage-LD-1000-5.JPEG
AltImagePath2
/NBC-thul-LD-1000-5.JPEG
Bullet10
Designed to meet MSS SP-67
Bullet11
MSS SP-25 (markings)
Bullet5
Nickel electroplated ductile iron disc
Bullet6
Stainless steel stem with bronze bushings
Bullet7
Extended neck
Bullet8
Operating mechanism: Bare stem, manual gear operator and pneumatic/electric automation
Bullet9
Not recommended for steam service
Country
USA
Description
The NIBCO lug type butterfly valve provides bubble-tight shutoff at 200 PSI and bi-directional dead-end service without a downstream flange to 150 PSI. The valve is recommended for commercial and some light industrial process applications, in addition to H
Height
5.13
Install Link
Length
12.88
MadeInUSA
Yes
Material
Ductile Iron
Minimum Order Quantity
1
Prop65
This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Spec Sheet
UOM
Each
Weight
18.02
Width
8.75
Manufactured By
Nibco
Call for Price
BASE PRICE:
$
1038
80
/
/ 1
($1038.80 / 1)
