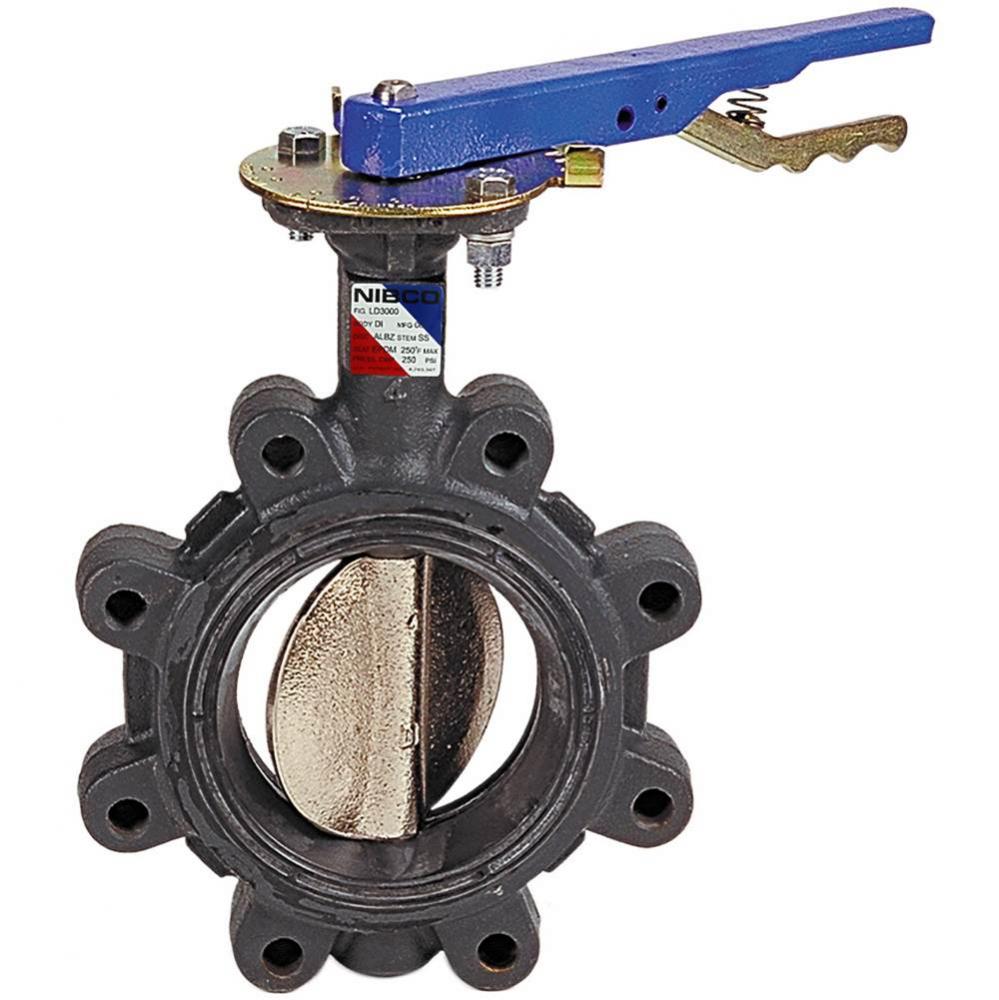

LD31223 3 LUG BFV L/LK HNDL DUCT IRON (NLG350F)
by Nibco
The NIBCO® ductile iron butterfly valve provides ease of operation with quarter-turn (90 degrees) open to close. The unique molded-in Buna-N seat liner with stainless steel disc is recommended for chemical applications the liner compatibility will permit. With the internal stem/disc geometric drive design there is no need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 inches. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® butterfly valves are backed by the NIBCO 5-year 125% limited warranty.
Product Specification
Item #
NLG350F
Dimensions
Additional product details
Vendor Item #
NLG350F
Plumbing Category
Water Filtration
Plumbing Subcategory
Parts
AltImageName1
/NBC/LD30223.jpg
AltImageName2
/NBC/LD30223.jpg
AltImagePath1
/NBC-LD30223.JPEG
AltImagePath2
/NBC-LD30223.JPEG
Bullet10
Designed to meet MSS SP-67
Bullet11
MSS SP-25 (markings)
Bullet5
Stainless steel disc
Bullet6
Stainless steel stem with copper bushings
Bullet7
Extended neck
Bullet8
Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator and pneumatic/electric automation
Bullet9
Not recommended for steam service
Description
The NIBCO lug type butterfly valve provides bi-directional dead-end service without a downstream flange, and bubble-tight shutoff at 250 PSI. The valve performs well in isolation and throttling applications, commercial, some light industrial process, and c
Height
4.590
Install Link
Length
14.130
MadeInUSA
Yes
Material
Ductile Iron
Minimum Order Quantity
1.000
Prop65
This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Ship Weight
12.223
Shipping Height
5.125
Shipping Length
12.875
Shipping Width
8.75
Spec Sheet
UOM
Each
Weight
11.681
Width
10.520
Manufactured By
Nibco
