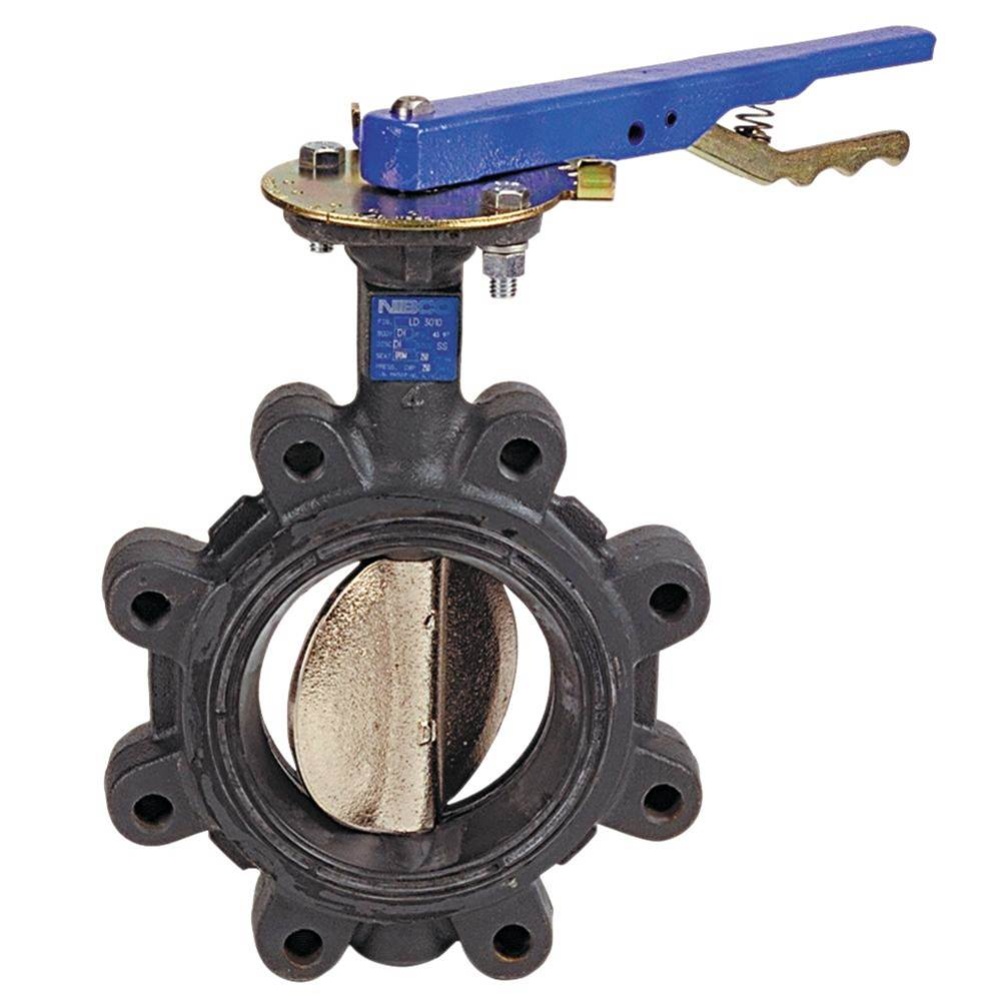

LDL1100 5 LUG BFV LOW TORQ BARE STEM DI : NLG24PJ

The NIBCO® ductile iron butterfly valve features a unique molded-in Buna-N seat liner with ductile iron, electro nickel plated disc, recommended for most water applications. The internal stem/disc geometric drive design eliminates the need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 inches. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® butterfly valves are backed by the NIBCO 5-year 125% limited warranty.

Product Specification

Item #

NLG24PJ

Dimensions

Additional product details

Vendor Item #

NLG24PJ

Plumbing Category

Plumbing Supplies

Plumbing Subcategory

Valves

AltImageName1

/NBC/LD31103.jpg

AltImageName2

/NBC/LD31103.jpg

AltImagePath1

/NBC-LD31103.JPEG

AltImagePath2

/NBC-LD31103.JPEG

Bullet10

Not recommended for steam service

Bullet11

Designed to meet MSS SP-67

Bullet12

MSS SP-25 (markings)

Bullet13

U.S. Coast Guard Category A

Bullet5

Nickel electroplated ductile iron disc

Bullet6

Stainless steel stem with copper bushings

Bullet7

Geometric drive

Bullet8

Extended neck

Bullet9

Operating mechanism: Bare stem for use with pneumatic or electric actuators

Country

USA

Description

The NIBCO lug type butterfly valve is provided with undercut discs for actuation purposes only. The valve is specifically designed for low pressure (100 PSI bubble-tight) on/off or modulating applications, to be used in conjunction with pneumatic or electr

Height

3.250

Install Link

Installation Link

Length

13.380

MadeInUSA

Yes

Material

Ductile Iron

Minimum Order Quantity

1.000

Prop65

This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Ship Weight

22.427

Shipping Height

Shipping Length

15.125

Shipping Width

Spec Sheet

UOM

Each

Weight

21.267

Width

10.000

Manufactured By

Nibco

Call for Price

Qty:

BASE PRICE:

982

/ / 1

($982.00 / 1)

Add To Cart

Add To Estimate

Add To Wishlist

Save To Compare

Availability:

Manufacturer availability unknown.
