N200138GO 5 WAF/EPD/NYL COAT DI DISC GOP : NLJ393J

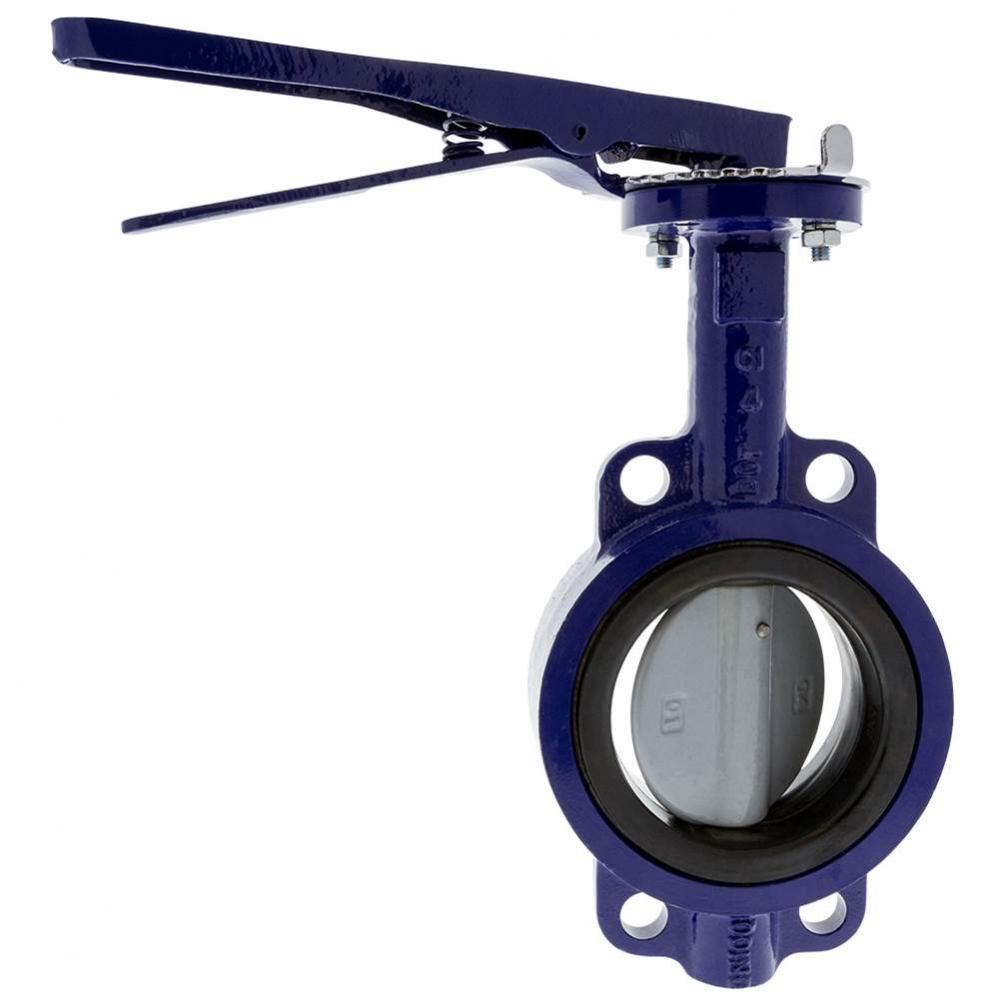

The NIBCO® cast iron butterfly valve provides ease of operation with quarter-turn (90 degrees) open to close. The EPDM cartridge seat liner with Nylon bonded ductile iron disc is recommended for most water applications, has good abrasion resistance properties and compatibility with solvents, oil, water and hydraulic fluid for compressed air. An extended neck allows for insulation up to 2 inches. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® cast iron butterfly valves for versatile and economical applications in commercial systems. These valves are backed by the NIBCO 5-year125% limited warranty.

Product Specification

Item #

NLJ393J

Dimensions

Additional product details

Vendor Item #

NLJ393J

Plumbing Category

Plumbing Supplies

Plumbing Subcategory

Valves

Bullet10

Designed to meet MSS SP-67

Bullet11

MSS SP-25 (markings)

Bullet12

Designed to meet API 609

Bullet5

EPDM cartridge seat liner

Bullet6

Extended neck

Bullet7

Wafer style

Bullet8

Operating mechanism: Bare stem, lever-lock operating system, manual gear operator

Bullet9

Not recommended for steam service

Country

China

Description

The NIBCO wafer type butterfly valve provides in-line bubble-tight shutoff at 200 PSI, recommended for quick installation and removal from piping. The valve performs well in commercial applications including HVAC and hot/cold potable water.

Height

6.850

Install Link

Installation Link

Length

17.850

Made to Order

MTO

Material

Cast Iron

Minimum Order Quantity

1.000

Prop65

This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Spec Sheet

UOM

Each

Weight

22.800

Width

10.730

Manufactured By

Nibco
