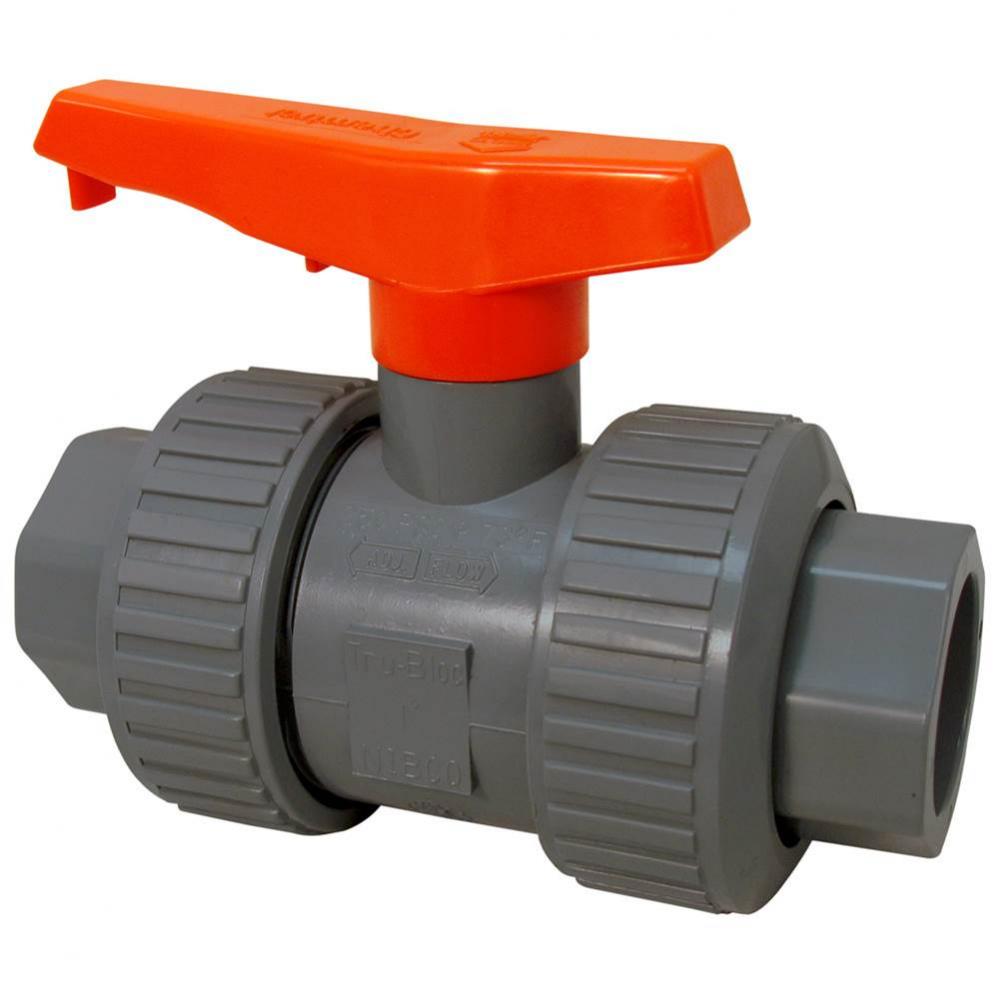

S45TB-V-BBV 3  BLEACH BALL VALVE SOC PVC
Image may not reflect selected features
S45TB-V-BBV 3 BLEACH BALL VALVE SOC PVC (MA597AF) by Nibco
All inner surfaces of the Tru-Bloc® bleach valve are kept constantly wetted and vented to the upstream side when the valve is in the closed position, eliminating the conditions required for gas accumulation and caustic crystallization in the body cavity. The Tru-Bloc® valve is engineered with a self-adjusting seat and upstream and downstream blocking capability to stop flow when an alternate union is removed for servicing the piping system. The valve can be easily joined with the socket end connections. Please refer to Chemtrol technical data sheets, valve selection guides and catalogs for engineering and installation information. PVC Schedule 80 exhibits excellent corrosion resistance properties and has the highest long-term hydrostatic strength of any other major thermoplastic material used for piping systems. Chemtrol PVC valves are lightweight, easy to install, maintenance-free, and will not rust, scale, pit or corrode. Choose Chemtrol® valves for the most reliable, versatile and economical valve option in commercial and industrial applications. Chemtrol® valves are backed by a 1-year limited warranty. Because Chemtrol® is a NIBCO brand the flow-control valves are unsurpassed in quality, performance and longevity.
Product Specification
Item #
MA597AF
Dimensions
Additional product details
Vendor Item #
MA597AF
Finish
Gray
Plumbing Category
Plumbing Supplies
Plumbing Subcategory
Valves
AltImageName1
/NBC/U45TBBV.jpg
AltImageName2
/NBC/U45TBBV.jpg
AltImagePath1
/NBC-U45TBBV.JPEG
AltImagePath2
/NBC-U45TBBV.JPEG
Bullet10
NSF/ANSI Standard 14
Bullet11
NSF/ANSI/CAN-61
Bullet5
FKM O-ring
Bullet6
Socket end connections
Bullet7
Orange handle
Bullet8
Do not use or test with compressed air or other gases
Bullet9
ASTM F1970
Country
USA
Description
The Chemtrol Tru-Bloc True Union bleach ball valve is a viable solution for sodium hypochlorite transfer and injection applications. The vented ball effectively vents sodium hypochlorite out-gassing to the pressure port. The valve's injection molded PV
Disclaimer
Tru-Bloc pecent is a registered trademark of NIBCO INC. Chemtrol pecent is a registered trademark of NIBCO INC.
Finish Family
Solid Colors
Height
7.180
Length
10.390
Low Lead
Yes
Made to Order
MTO
MadeInUSA
Yes
Material
Polyvinyl Chloride
Minimum Order Quantity
1.000
Ship Weight
11.082
Shipping Height
9
Shipping Length
10.5
Shipping Width
10.5
Spec Sheet
UOM
Each
Weight
10.418
Width
9.180
Manufactured By
Nibco
Finish
