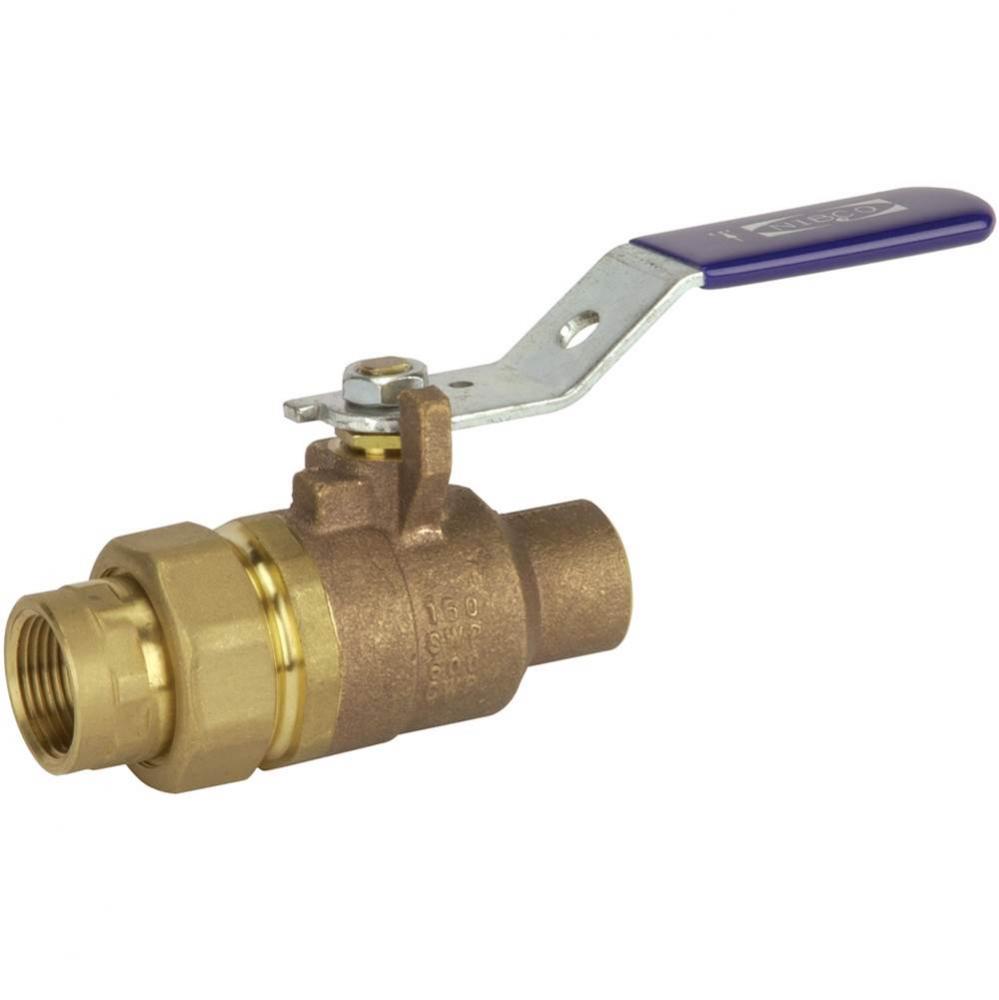

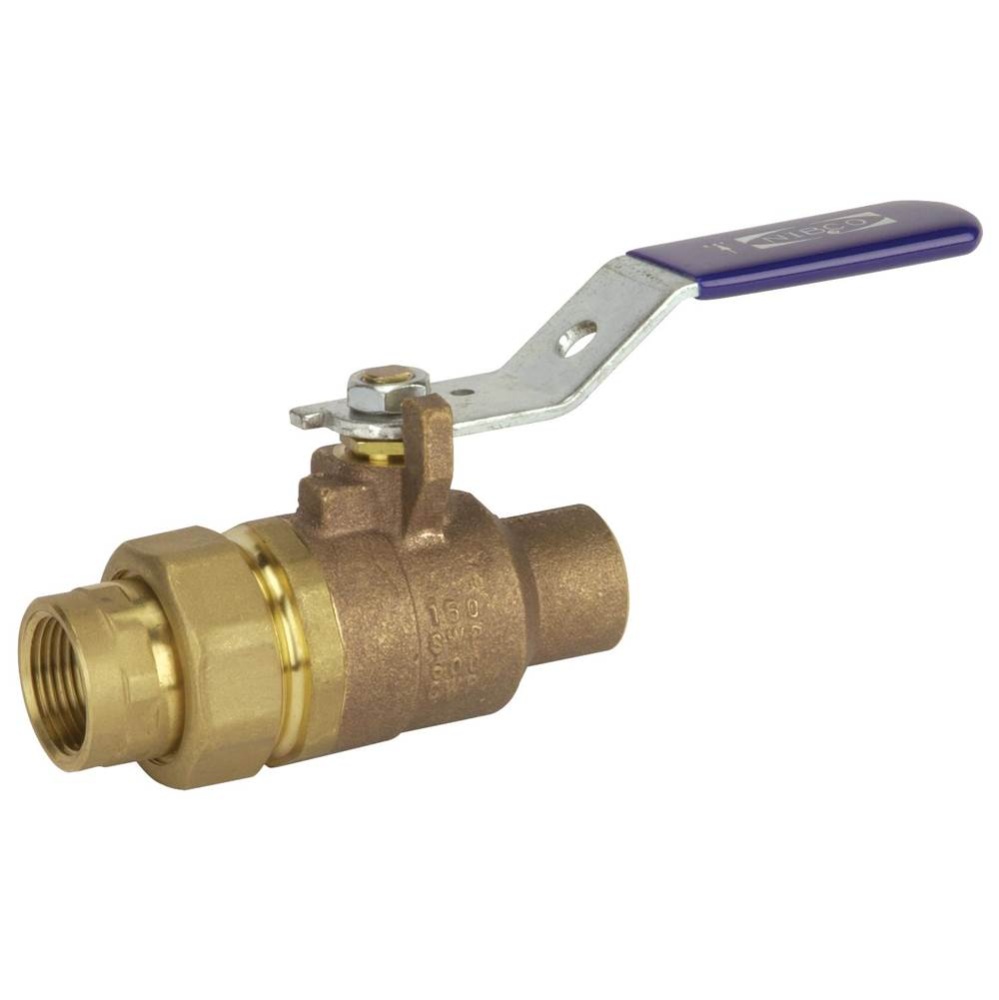

ST58570SU 2 W/SINGLE UNION END (NJ83F2D)
by Nibco
The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The reinforced PTFE seat ring and brass hard chrome plated ball exhibit high chemical resistance properties and is recommended for many high pressure applications. The two-piece valve is ideal for commercial and light industrial process applications that may include HVAC, hot and cold domestic water, low pressure steam, compressed air, LP gas and natural gas. Please refer to NIBCO technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.
Product Specification
Item #
NJ83F2D
Dimensions
Additional product details
Vendor Item #
NJ83F2D
Plumbing Category
Plumbing Supplies
Plumbing Subcategory
Valves
Bullet10
Conforms to MSS SP-110
Bullet5
Chrome plated brass ball, silicon bronze stem
Bullet6
Blowout-proof stem
Bullet7
Standard lever handle, optional NIB-SEAL®
Bullet8
Dezincification resistant
Bullet9
Use in U.S. drinking water applications is prohibited after January 3, 2014
Country
USA
Description
The NIBCO bronze ball valve provides bubble-tight shutoff at 600 PSI. This valve features a single union end piece to save labor, space and additional pipe joints. In addition, the valve has a solder body connection with threaded end piece for piping trans
Disclaimer
End Connection: Solder by thread Valve Style: Two-piece body, full port 600 psi Basic Material: Bronze Seat Material: Reinforced PTFE Trim Material: Brass hard chrome plated ball and silicon bronze stem NIB-SEAL pecent is a registered trademark of NIBCO
Height
3.100
Length
8.900
MadeInUSA
Yes
Material
Bronze
Minimum Order Quantity
1.000
Prop65
This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Ship Weight
39.816
Shipping Height
13.5
Shipping Length
12
Shipping Width
8.875
Spec Sheet
UOM
Each
Weight
9.441
Width
4.600
Manufactured By
