TFP600A-LF-LL 3 THRD FULL PORT LOCK LVR : NL998XLF

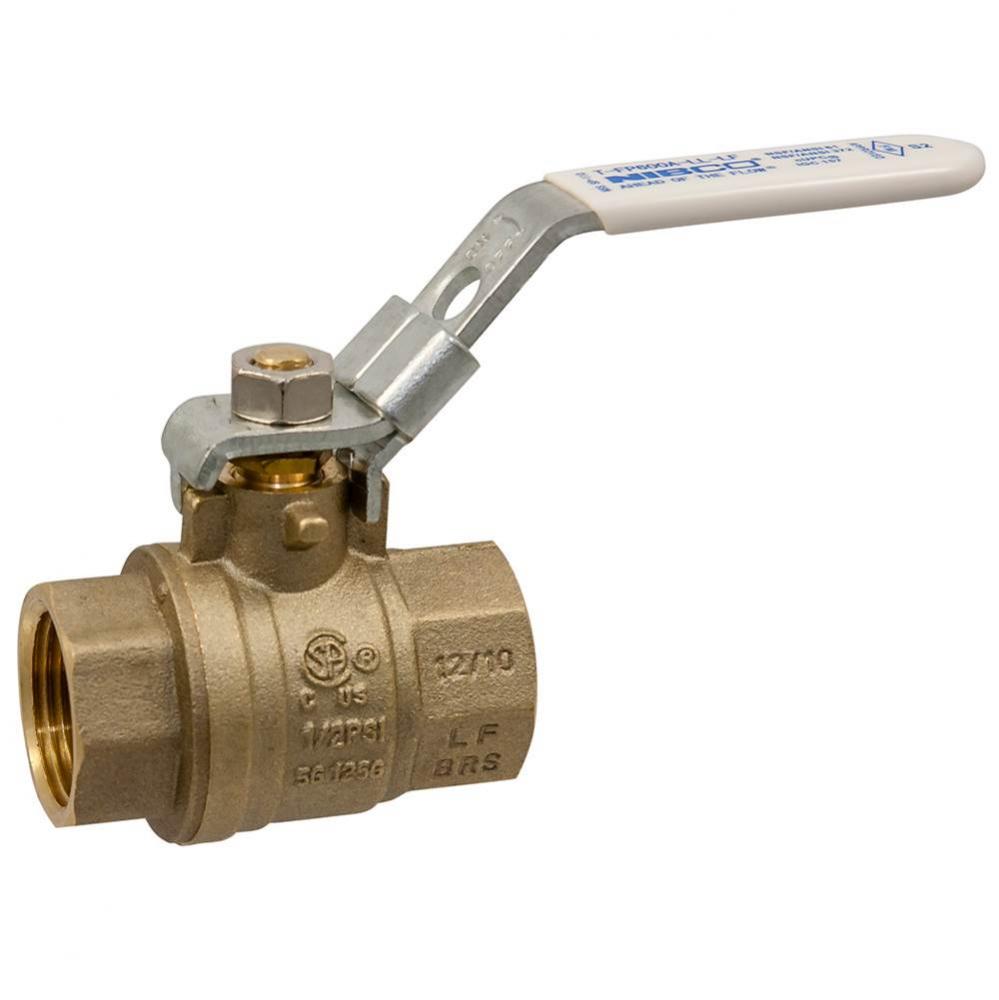

The NIBCO® lead-free copper alloy ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The two-piece valve features threaded end connections for easy installation. Please refer to NIBCO technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO® specialty valves are backed by a NIBCO INC. 2-year limited warranty.

Product Specification

Item #

NL998XLF

Dimensions

Additional product details

Vendor Item #

NL998XLF

Plumbing Category

Plumbing Supplies

Plumbing Subcategory

Valves

Bullet10

CSA ASME B16.33: 125 psig (maximum) (1/4" to 4")

Bullet11

CSA CAN / CGA 3.16 (1/4" to 4")

Bullet12

CSA CGA CR91-002: 1/2 psig, 2 psig, and 5 psig (1/4" to 4")

Bullet13

FM 1140 approved 175 wwp (1/4" to 2")

Bullet14

UL 1477 (YQNZ): Compressed gas shutoff valves – 250 psi (1/4" to 4")

Bullet15

UL 842 (YRBX): Flammable liquid shutoff valves – 250 psi (1/4" to 4")

Bullet16

UL 842 (YRPV): Gas shutoff valves – 250 psi (1/4" to 4")

Bullet17

UL 842 (MHKZ): Manual valves – 250 psi (1/4" to 4")

Bullet18

UL 125 (YSDT): LP-Gas shutoff valves – 250 psi (1/4" to 4")

Bullet19

UL Subject 258 (VQGU): Trim and drain valves (1/4" to 2")

Bullet5

Locking lever handle

Bullet6

Threaded end connections

Bullet7

IAPMO listed to NSF/ANSI-61-8, NSF/ANSI-372 and UPC-IGC-157

Bullet8

CSA ANSI Z21.15 / CSA 9.1 (1/4" to 4")

Bullet9

CSA ASME B16.44: 5 psig (maximum) (1/4" to 4")

Country

China

Description

The NIBCO lead-free* copper alloy ball valve with threaded end connections provides bubble-tight shutoff. The valve's PTFE seats and lead-free ball exhibit high corrosion resistance properties. The valve is ideal for hot/cold water and gas applications

Height

4.920

Length

11.680

Low Lead

Yes

Material

Lead-Free Brass

Minimum Order Quantity

1.000

Prop65

This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Ship Weight

19.9

Shipping Height

6.89

Shipping Length

12.99

Shipping Width

5.71

Spec Sheet

UOM

Each

Weight

9.950

Width

7.580

Manufactured By

Nibco
