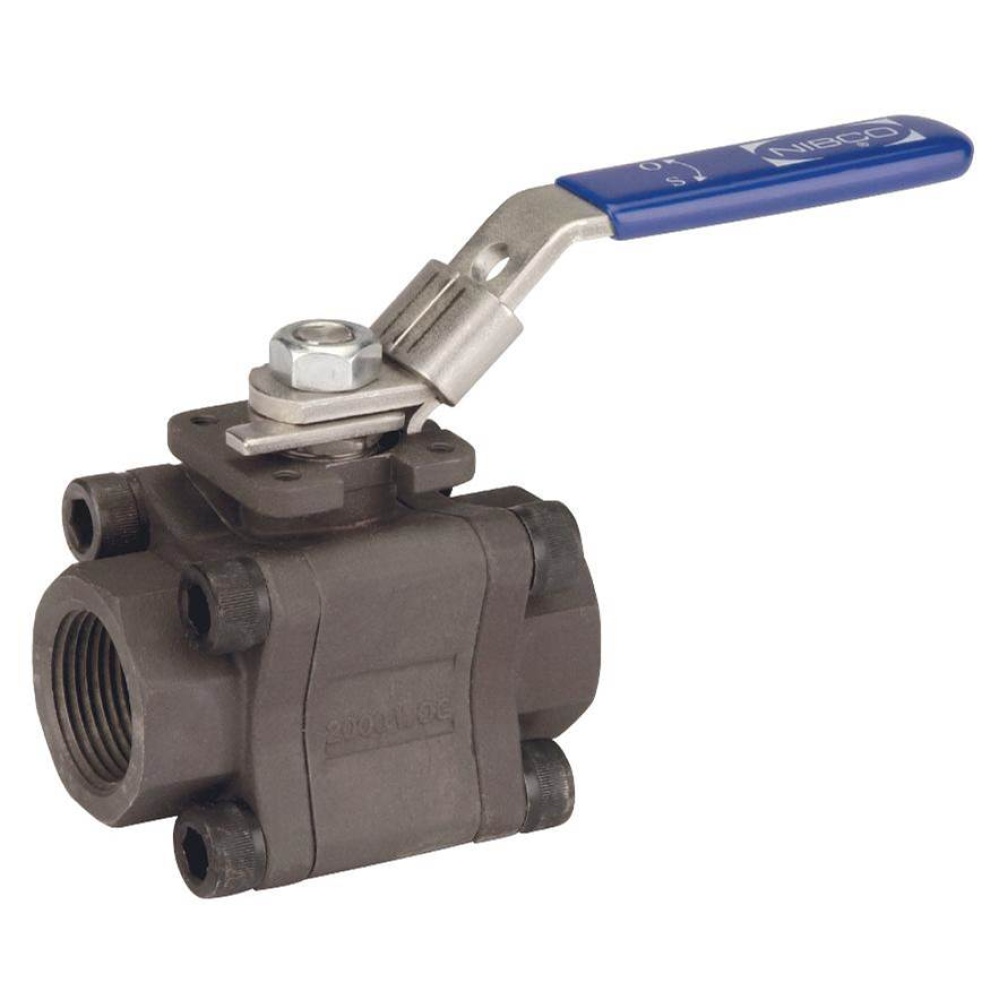

TM590CSR66FSLL 2 CS THD 3PC W/MT FS LL : NL9703D

The NIBCO carbon steel ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The reinforced PTFE 15 Percent glass seat ring, Graphite stem packing and stainless steel ball/stem exhibits high chemical resistance properties and is recommended for process piping. The valve also features an enclosed bolt design. This valve features a standard lockable lever handle for security purposes. It may be used for isolation and throttling (half open to full open only). Please refer to NIBCO technical data sheets, valve selection guides, chemical resistance guide and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO ball valves are backed by the exclusive NIBCO INC. 5-year 125 Percent limited warranty.

Product Specification

Item #

NL9703D

Dimensions

Additional product details

Vendor Item #

NL9703D

Plumbing Category

Plumbing Supplies

Plumbing Subcategory

Valves

AltImageName1

/NBC/webimage-TM-590-CS-R-66-FS-LL.jpg

AltImageName2

/NBC/thul-TM-590-CS-R-66-FS-LL.jpg

AltImagePath1

/NBC-webimage-TM-590-CS-R-66-FS-LL.JPEG

AltImagePath2

/NBC-thul-TM-590-CS-R-66-FS-LL.JPEG

Bullet10

Cast ISO mounting pad

Bullet11

Threaded ISO mount end connections

Bullet12

Conforms to MSS SP-110

Bullet13

API-607 Fourth Edition Fire Safe

Bullet14

API-608 Anti-Static

Bullet5

Enclosed bolt design

Bullet6

Reinforced PTFE seats

Bullet7

Stainless steel ball and stem

Bullet8

Vented ball

Bullet9

Locking lever handle

Country

Taiwan

Description

The NIBCO carbon steel ball valve provides bubble-tight shutoff at 2000 PSI. The valve is available with threaded pipe connections and cast ISO mounting pad for actuation purposes. The three-piece valve is recommended for petrochemical and utility service

Disclaimer

End Connection: Threaded Valve Style: Three-piece body, conventional port Basic Material: Carbon steel Seat Material: Reinforced PTFE 15% glass Trim Material: Stainless steel ball and stem

Height

4.16

Install Link

Installation Link

Length

10.2

Material

Carbon Steel

Minimum Order Quantity

Spec Sheet

UOM

Each

Weight

10.72

Width

6.17

Manufactured By

Nibco
