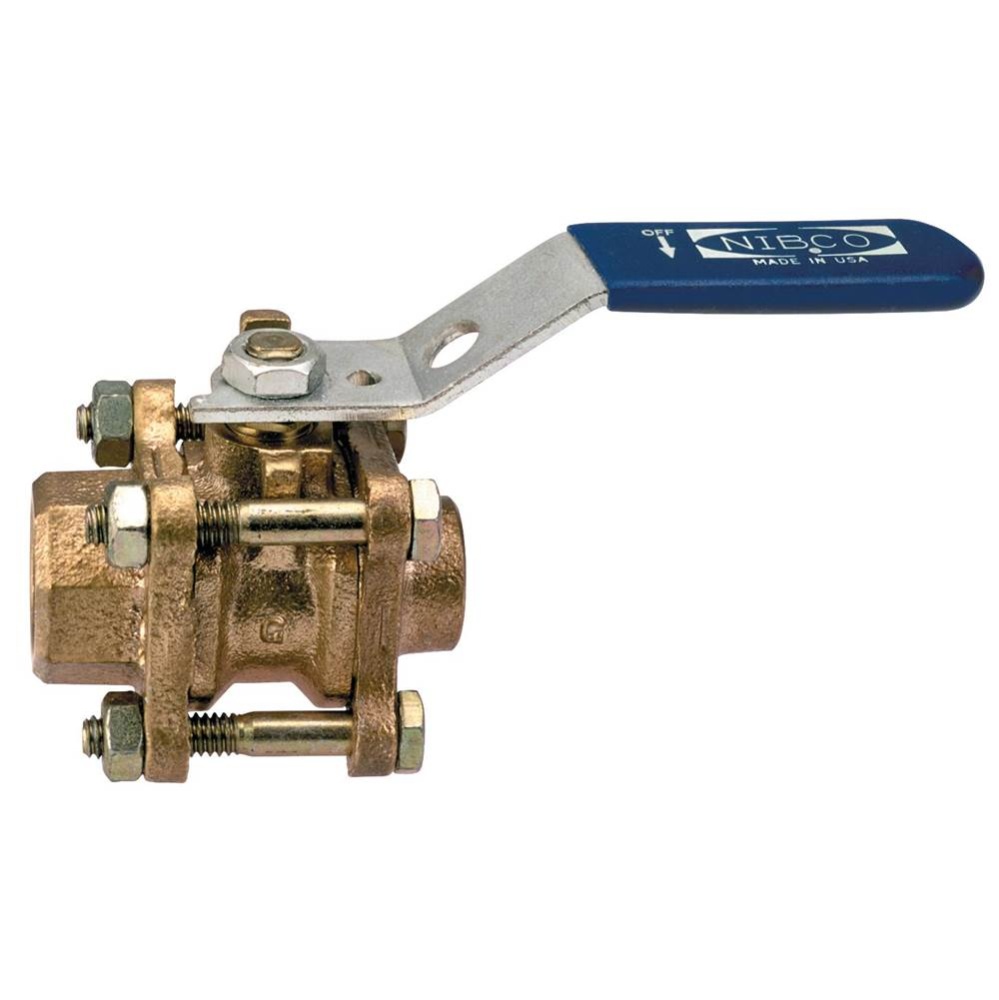

TS595Y 2 THD/SOL FULL PORT BRZ BALL : NL99A0D | Streaming Plumbing & Hardware

The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The PTFE seat ring and brass hard chrome plated ball exhibits high chemical resistance properties and is recommended for many high pressure applications. The three-piece valve features threaded by solder end connections for easy installation. Options include NIB-SEAL® insulated handle that eliminates condensate. Please refer to NIBCO technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.

Product Specification

Item #

NL99A0D

Dimensions

Additional product details

Vendor Item #

NL99A0D

Plumbing Category

Plumbing Supplies

Plumbing Subcategory

Valves

Bullet10

Conforms to MSS SP-110

Bullet5

Blowout-proof stem

Bullet6

Standard lever handle or locking lever, optional NIB-SEAL®

Bullet7

Thread x solder end connections

Bullet8

Dezincification resistant

Bullet9

Use in U.S. drinking water applications is prohibited after January 3, 2014

Country

USA

Description

The NIBCO full port bronze ball valve provides bubble-tight shutoff at 600 PSI. This valve is equipped with threaded by solder end connections for making piping transitions in line. The three-piece valve is ideal for hot/cold water, numerous gas applicatio

Disclaimer

NIB-SEAL pecent is a registered trademark of NIBCO INC.

Height

4.000

Install Link

Installation Link

Length

9.680

MadeInUSA

Yes

Material

Bronze

Minimum Order Quantity

1.000

Prop65

This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Ship Weight

41.404

Shipping Height

13.5

Shipping Length

Shipping Width

8.875

Spec Sheet

UOM

Each

Weight

9.838

Width

5.630

Manufactured By

Nibco
