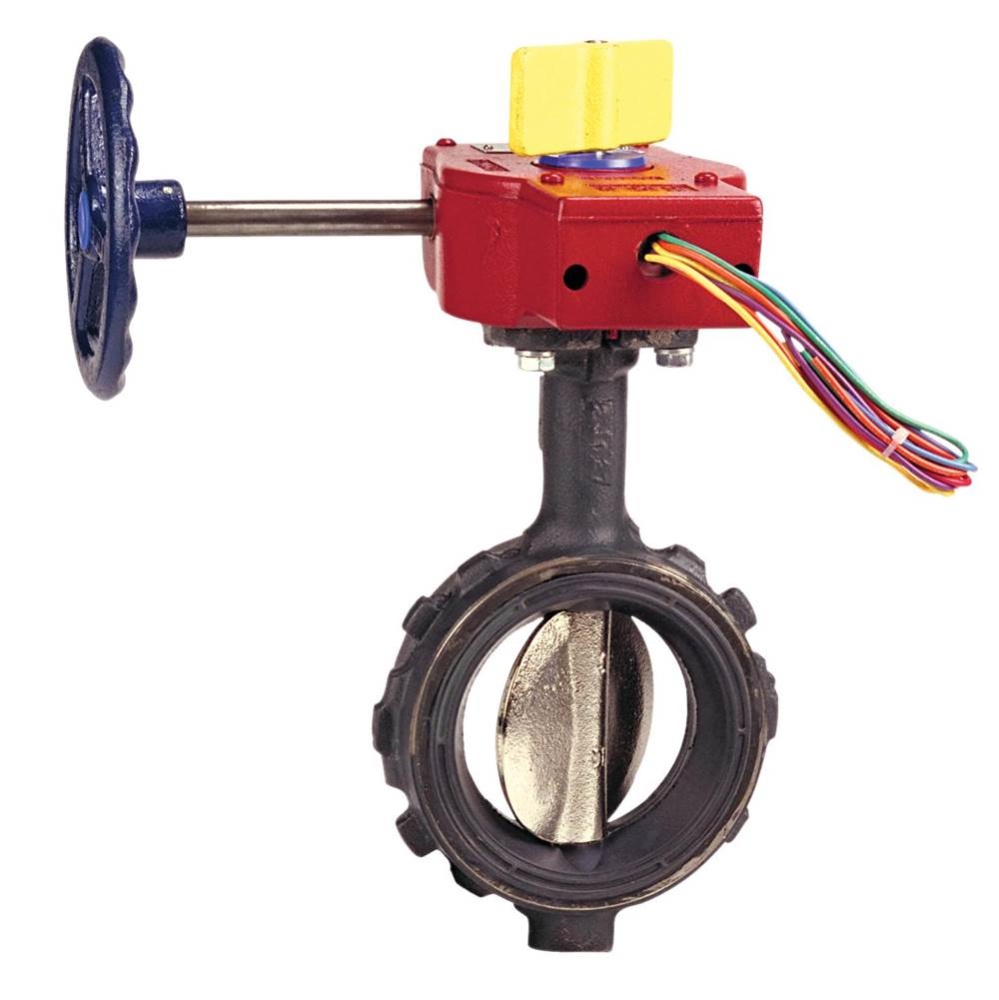

WD35104 2-1/2 UL/FM BFV W/GO : NLH800E | Streaming Plumbing & Hardware

The NIBCO® ductile iron butterfly valve is designed specifically to meet the rigorous requirements of automatic sprinkler systems. The unique EPDM molded-in seat liner with ductile iron disc provides bubble-tight shutoff at rated pressure. With the internal stem/disc geometric drive design there is no need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 inches. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and fire protection systems. NIBCO® butterfly valves are backed by the NIBCO 5-year 125% limited warranty.

Product Specification

Item #

NLH800E

Dimensions

Additional product details

Vendor Item #

NLH800E

Plumbing Category

Plumbing Supplies

Plumbing Subcategory

Valves

AltImageName1

/NBC/WD35108.jpg

AltImageName2

/NBC/WD35108.jpg

AltImagePath1

/NBC-WD35108.JPEG

AltImagePath2

/NBC-WD35108.JPEG

Bullet10

Available in-ground post (suffix GP) or wall post (suffix WP) versions - UL only

Bullet11

UL/ULC Listed

Bullet12

FM Approved

Bullet13

UL Listed for Indoor and Outdoor Service

Bullet14

Designed to meet MSS SP-67

Bullet15

MSS SP-25 (markings)

Bullet16

Approved by New York City MEA 9-97-E, Vol.2 when assembled with appropriate NYC indicator flag

Bullet17

California State Fire Marshal Listing No. 770-1243:104

Bullet5

Stainless steel stem with copper bushings

Bullet6

Geometric drive

Bullet7

Extended neck

Bullet8

Operating mechanism: Manual gear operator

Bullet9

Available with (suffix 8N) or without (suffix 4N) internal monitor switches

Country

USA

Description

The NIBCO wafer type butterfly valve is classified as a fire protection control valve that is Listed by UL and FM Approved for bubble-tight shutoff at 250 psi water working pressure. Wafer valves are recommended for quick installation and removal from pipi

Height

8.300

Install Link

Installation Link

Length

13.760

MadeInUSA

Yes

Material

Ductile Iron

Minimum Order Quantity

1.000

Prop65

This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Ship Weight

25.849

Shipping Height

Shipping Length

15.625

Shipping Width

Spec Sheet

UOM

Each

Weight

23.489

Width

8.610

Manufactured By

Nibco
