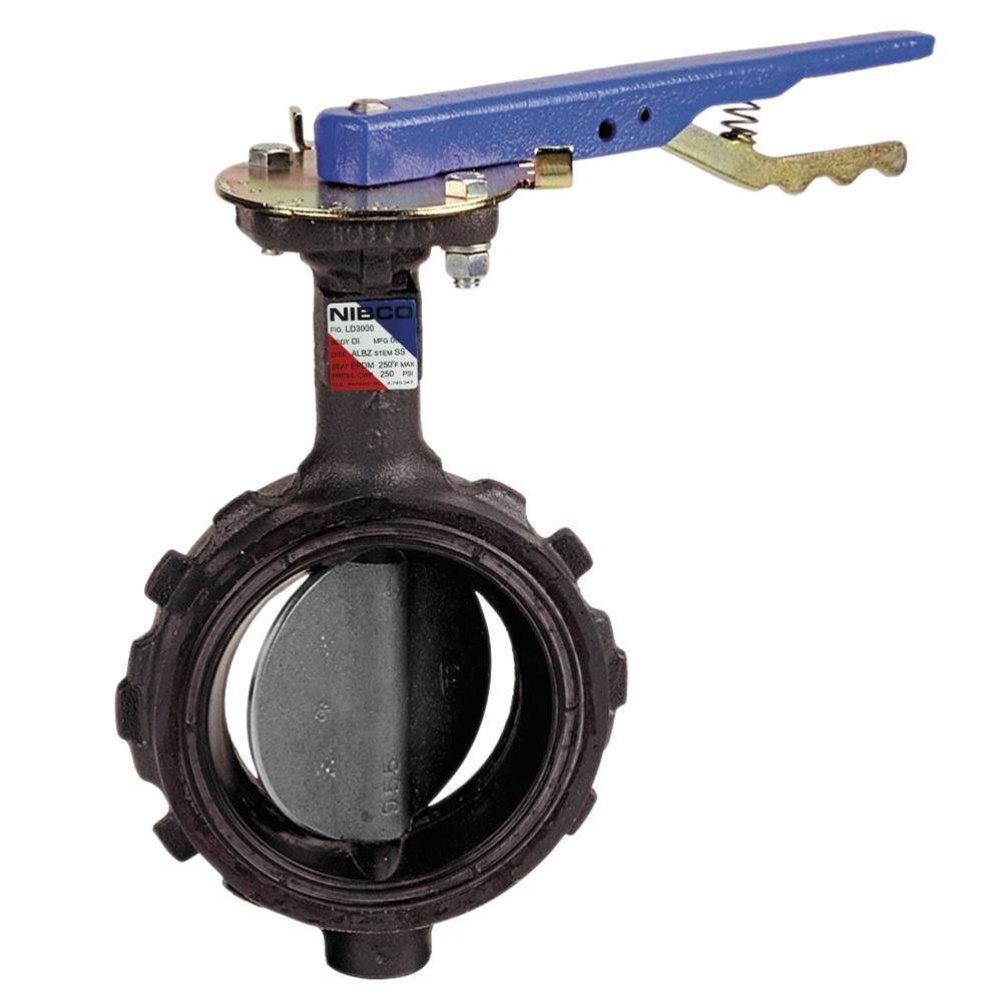

WD50220 3 WAFER BFV BARE ST DI 285PSI (NLH940F)
by Nibco
The NIBCO® ductile iron butterfly valve provides ease of operation with quarter-turn (90 degrees) open to close. The unique molded-in EPDM seat liner with stainless steel disc is recommended for the higher pressure requirements of systems today and chemical applications the liner compatibility will permit. With the internal stem/disc geometric drive design eliminates the need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 inches. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® butterfly valves are backed by the NIBCO 5-year 125% limited warranty.
Product Specification
Item #
NLH940F
Dimensions
Additional product details
Vendor Item #
NLH940F
Plumbing Category
Plumbing Supplies
Plumbing Subcategory
Valves
AltImageName1
/NBC/WD5022.jpg
AltImageName2
/NBC/WD5022.jpg
AltImagePath1
/NBC-WD5022.JPEG
AltImagePath2
/NBC-WD5022.JPEG
Bullet10
Not recommended for steam service
Bullet11
Designed to meet MSS SP-67
Bullet12
MSS SP-25 (markings)
Bullet13
U.S. Coast Guard Category A
Bullet5
Stainless steel disc
Bullet6
Stainless steel stem with stainless steel bushings
Bullet7
Geometric drive
Bullet8
Extended neck
Bullet9
Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator
Country
USA
Description
The NIBCO wafer type butterfly valve provides bubble-tight shutoff at 285 PSI are recommended to meet today's higher pressure demands and for quick installation and removal from piping. The valve performs well in isolation and throttling applications,
Height
3.250
Install Link
Length
10.770
MadeInUSA
Yes
Material
Ductile Iron
Minimum Order Quantity
1.000
Prop65
This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Ship Weight
8.671
Shipping Height
5.125
Shipping Length
12.875
Shipping Width
8.75
Spec Sheet
UOM
Each
Weight
8.129
Width
6.120
Manufactured By
Nibco
Call for Price
BASE PRICE:
$
916
00
/
/ 1
($916.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer availability unknown.
