Dielectric Union
Image may not reflect selected features
Dielectric Union (0009887) by Watts Water

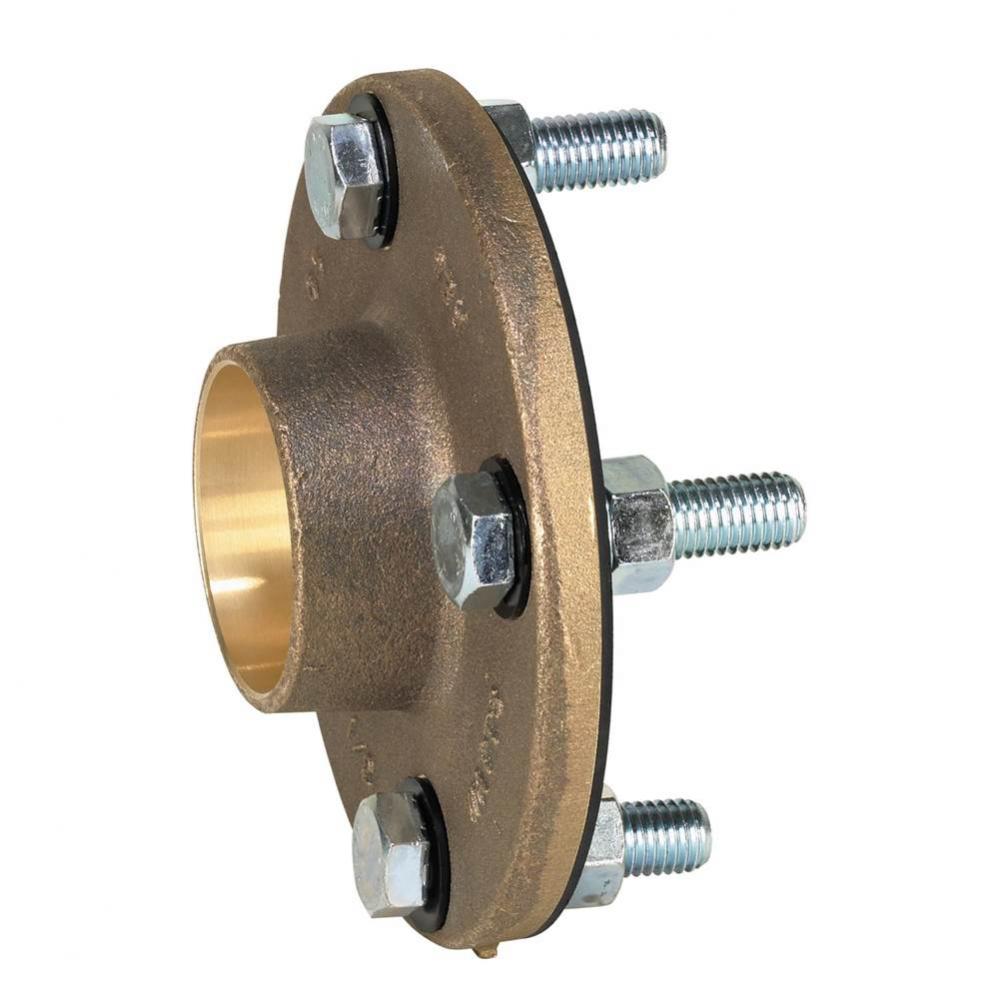

This 2 1/2 inch lead free class 125 dielectric flange pipe fitting is designed for commercial and residential applications such as the connections of piping of dissimilar metals on a hot water storage tank, water and air conditioners, processing tanks, steam, gas, and water piping to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is suitable for water, air, oil, natural gas, propane, gasoline, kerosene, mineral oil, vegetable oil, and alkaline. It consists of a single bronze body tailpiece with solder copper connection with a Buna-N gasket and hardware. The maximum temperature is rated up to 180 degrees F (82 degrees C). The maximum pressure is rated at 175 PSI (12.1 BAR).
Product Specification
Item #
0009887
Dimensions
Additional product details
Vendor Item #
0009887
Plumbing Category
Parts
Description
2 1/2 In Lead Free Class 125 Dielectric Flange Pipe Fitting, Solder Copper Flange, Bronze Body, Gasket, Bolt Ins, Nuts, And Bolts
Spec Sheet
Weight
7.68
Manufactured By
Watts Water
Call for Price
Qty:
BASE PRICE:
$
457
00
/ / 1
($457.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer availability unknown.
