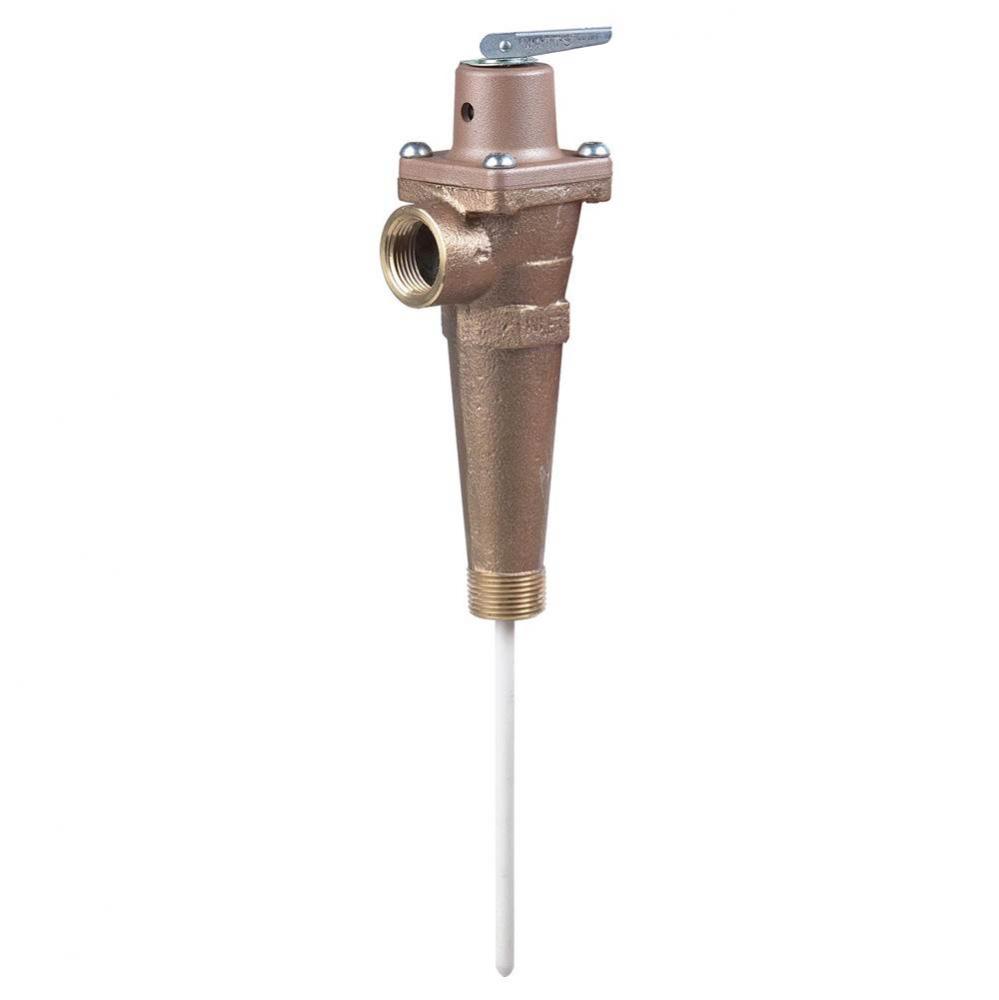

Temperature Pressure Relief Valve (0163805)
by Watts Water
This 1 inch bronze automatic reseating temperature and pressure relief valve has a 1 21/32 inch extended shank and 3 1/2 inch thermostat that is installed directly in tank tapings. It is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It is constructed of a bronze body with NPT male inlet x NPT female outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature, and test lever. The temperature relief is 210 degrees (99 degrees C) and the pressure relief is 150 PSI.
